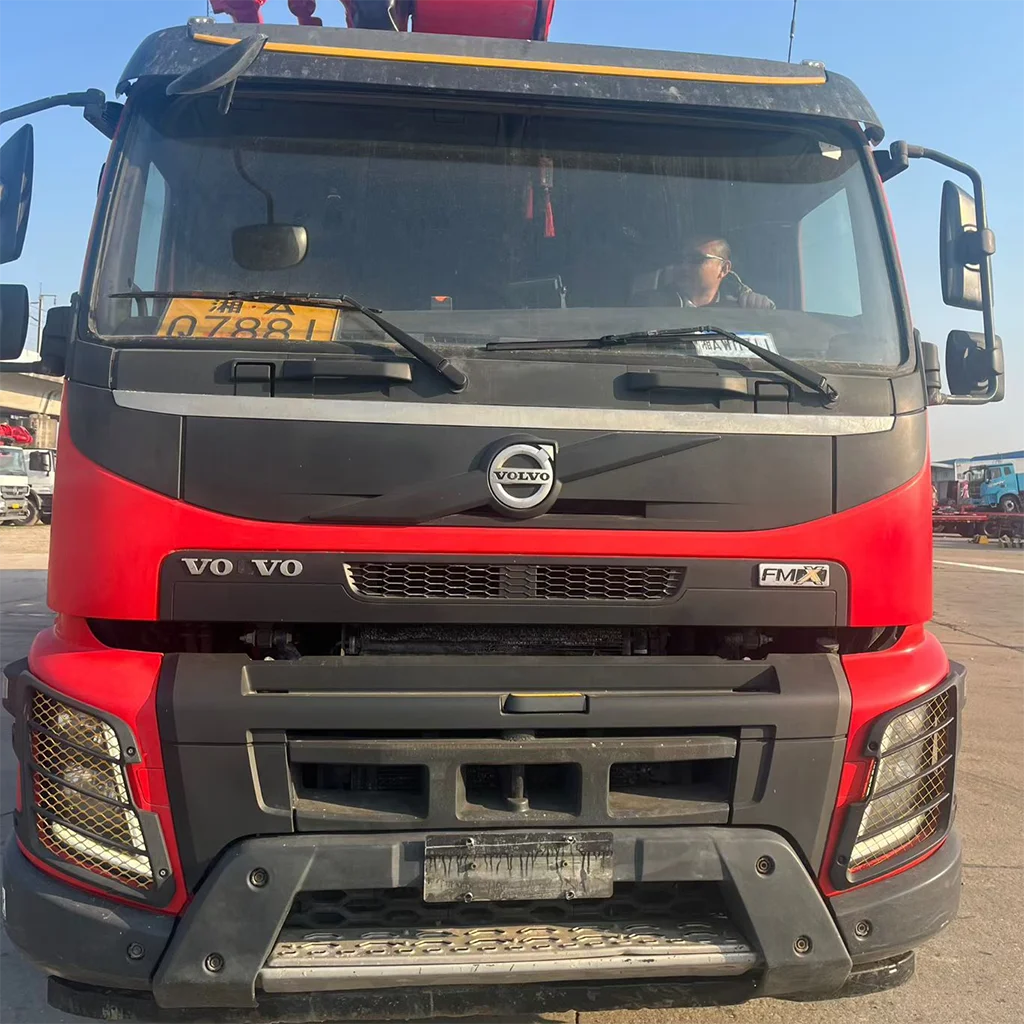

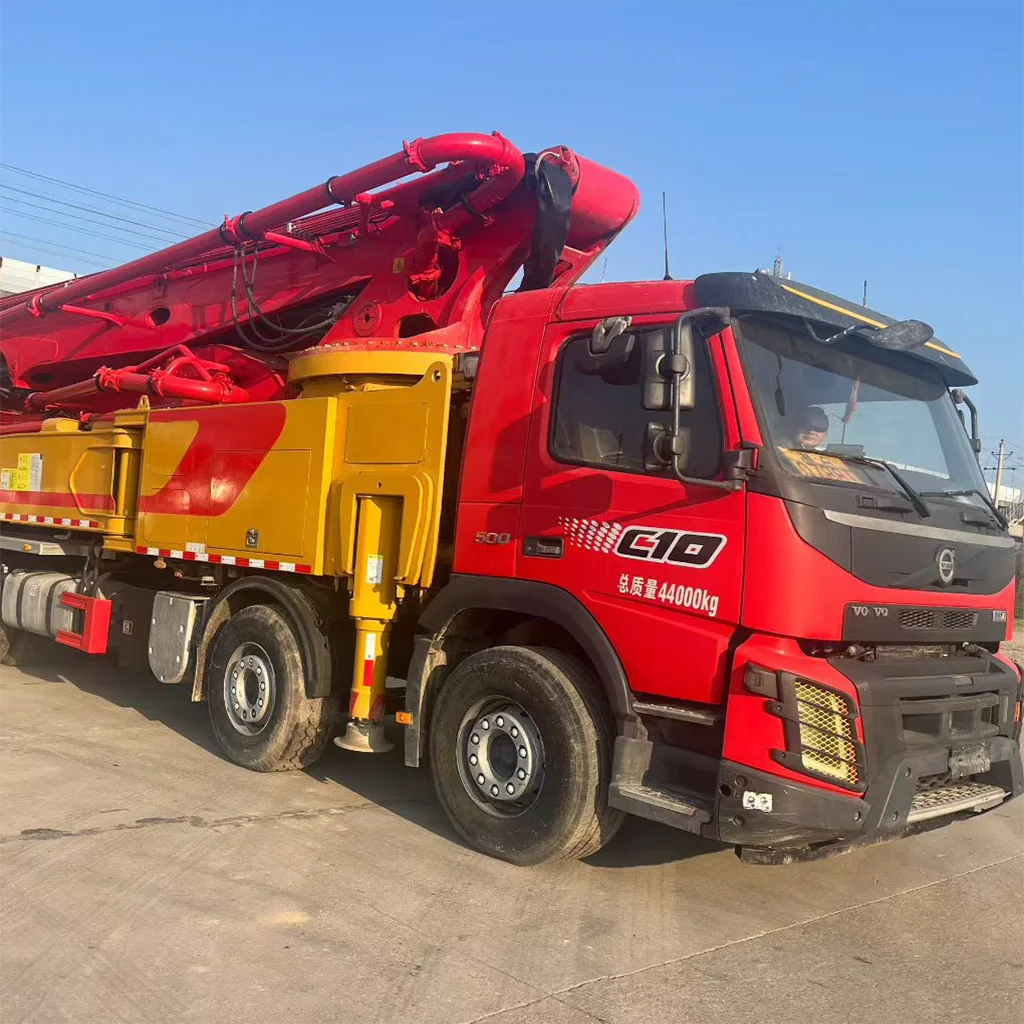

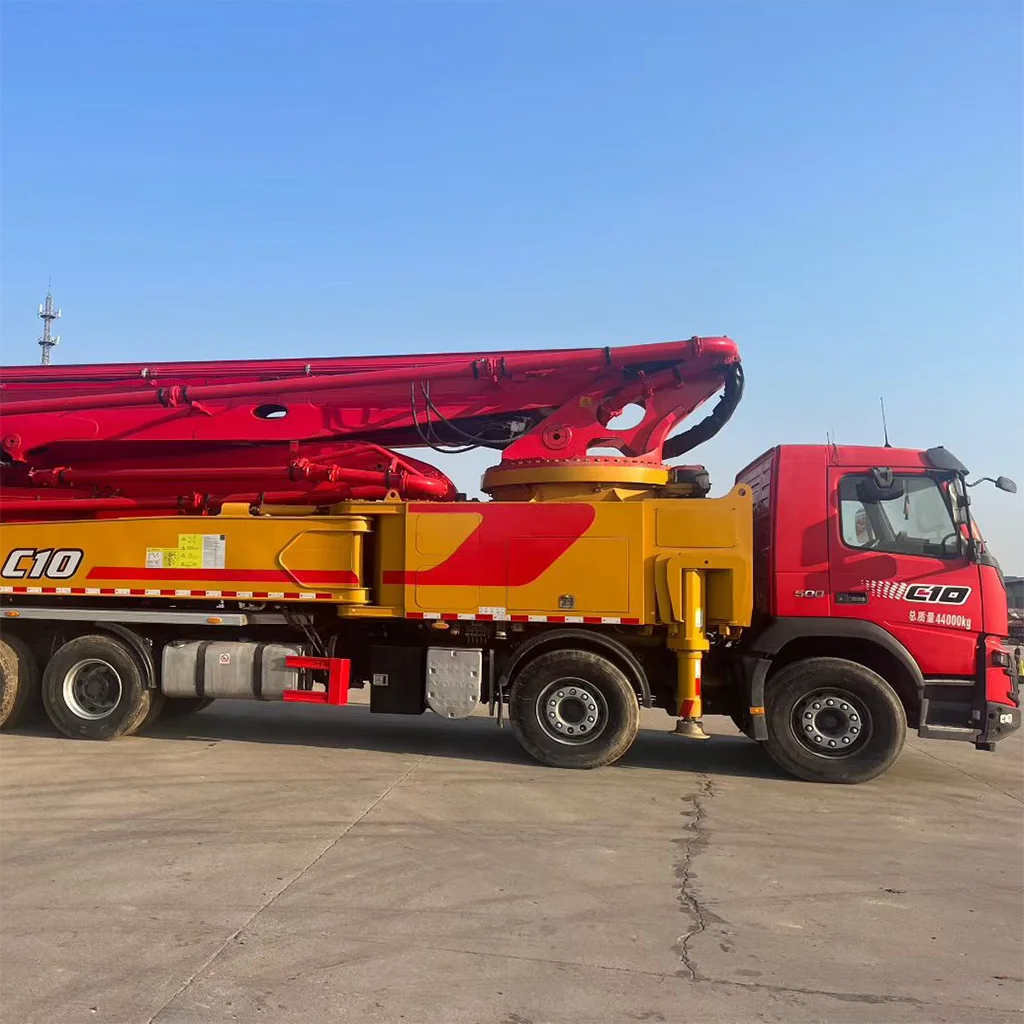

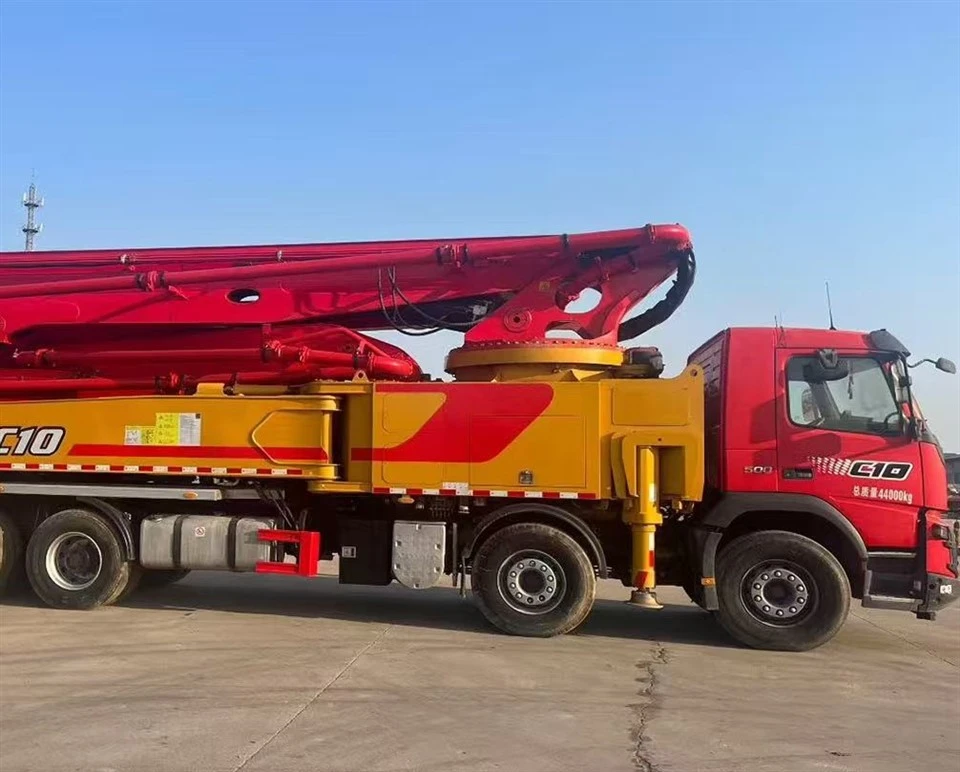

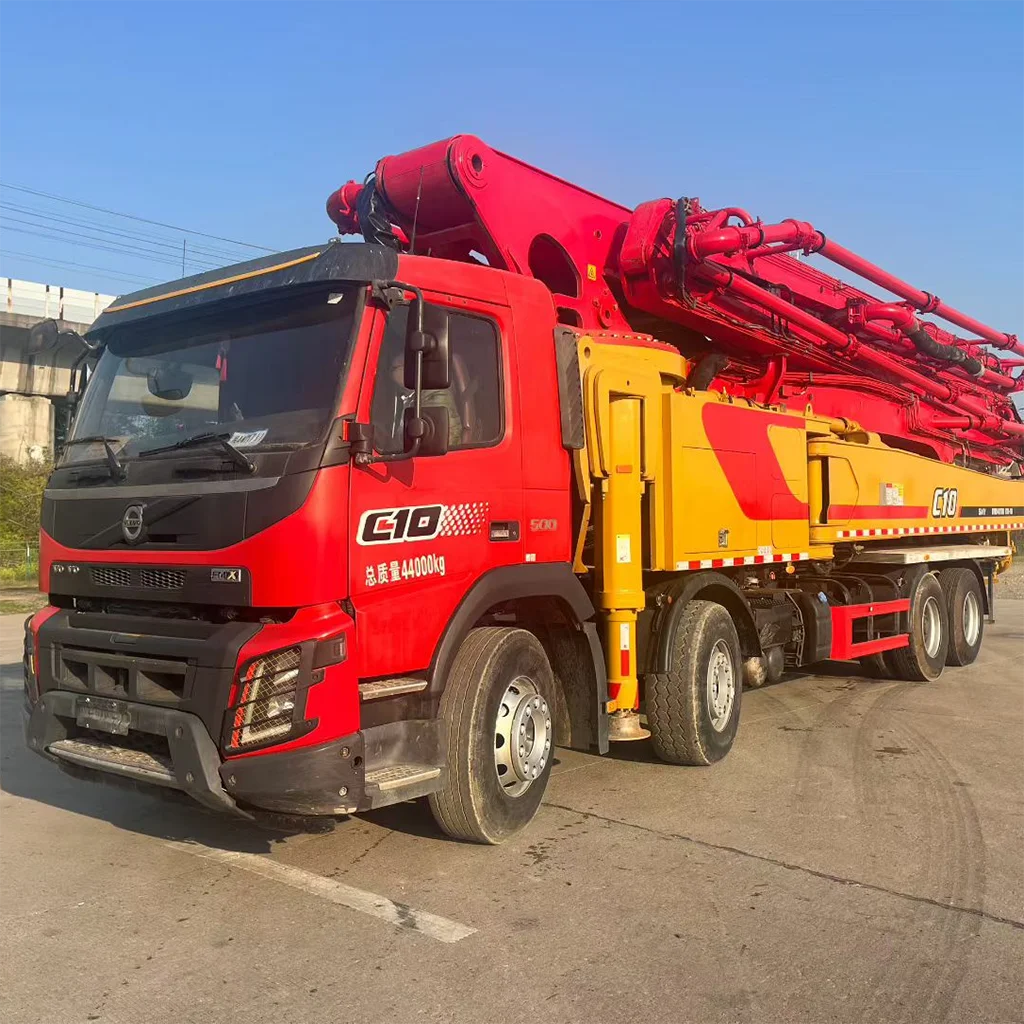

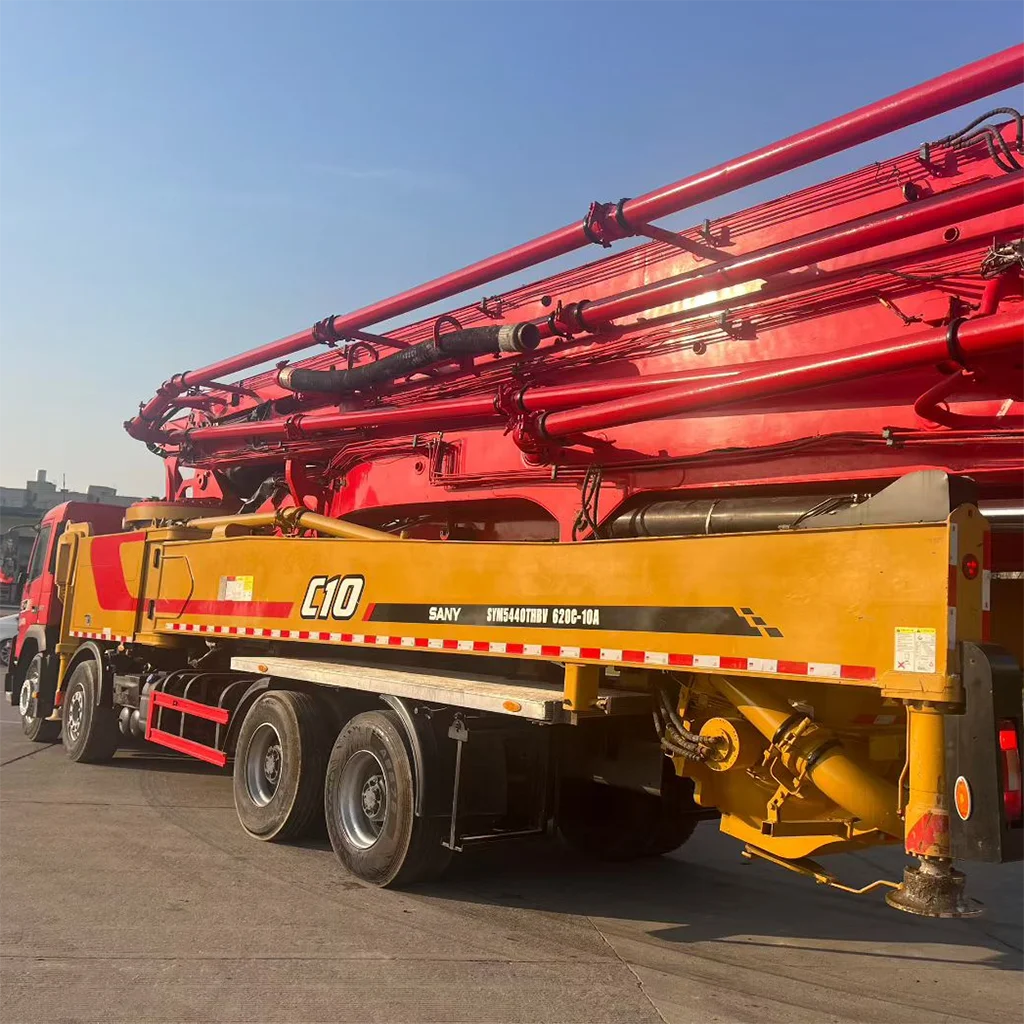

2020 Volvo Chassis + Sany Upper Body 4-Axle 62-Meter Euro V Concrete Pump Truck
Well-maintained, with an exceptionally clean cab and boom placer.
* The Volvo chassis delivers stable and reliable performance. Its six-section boom enables flexible concrete pouring. The X-shaped outriggers suit narrow job sites, paired with an energy-saving electronic control system.
* A best-selling 68m model with competitive pricing.
| Item | Details |
|---|---|
| Product Name | 2020 Volvo Chassis + Sany Superstructure Four-axle 62-meter Euro V Concrete Pump Truck |
| Manufacturing Year | 2020 |
| Power Type | Diesel |
| Production Capacity | 120–180 m³/h |
| Total Vehicle Weight | 46,000 kg |
| Max Horizontal Delivery Distance | 57 m |
| Max Vertical Delivery Height | 62 m |
| Warranty | N/A |
| Power Rating & Rotating Speed | 348 kW / 1900 rpm |
| Model No. | SYM5460THB 620C-8A |
| Working Hours | N/A |
| Main Brand | Sany Heavy Industry |
| Superstructure Brand | Sany Heavy Industry (2020) |
| Chassis Brand & Model | Volvo FMX (2020) |
| Number of Axles | 4 axles |
| Boom Length | 62 m |
| Origin | China |
| Overall Dimension (L×W×H) | 15700mm × 2500mm × 4000mm |
| Emission Standard | China National V (Euro V Equivalent) |
| Body Color | N/A |
| Mechanical Test Report | Available |
| Vertical Boom Height | 62 m |
| Placing Depth | 42 m |
| Max Allowable Aggregate Size | Standard aggregate for normal concrete |
| Core Components | Volvo D13 engine, 6-section RZ folding boom, S-tube, Rexroth main hydraulic pump |
| Unique Selling Points (USP) | 1. Stable & reliable Volvo chassis;2. Flexible pouring operation with 6-section boom;3. X-type outriggers adapt to narrow construction sites;4. Energy-saving electronic control system |
| Factory Inspection Video | Available |
| Engine Horsepower | 510 HP |
| Horizontal Swing Range of Boom | ±270° |
| Concrete Delivery Pipe Diameter | Φ125 mm |

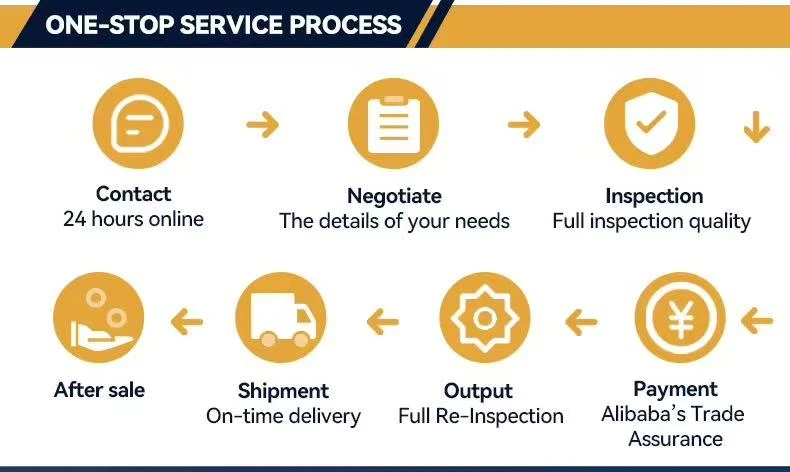

The company adheres to the business philosophy of quality-oriented and integrity-first. Every piece of equipment undergoes strict inspection, evaluation and refurbishment to ensure reliable equipment performance and transparent transaction procedures. Relying on an experienced professional team, we provide one-stop full-process service solutions covering equipment selection, technical assessment, logistics delivery and after-sales support.
