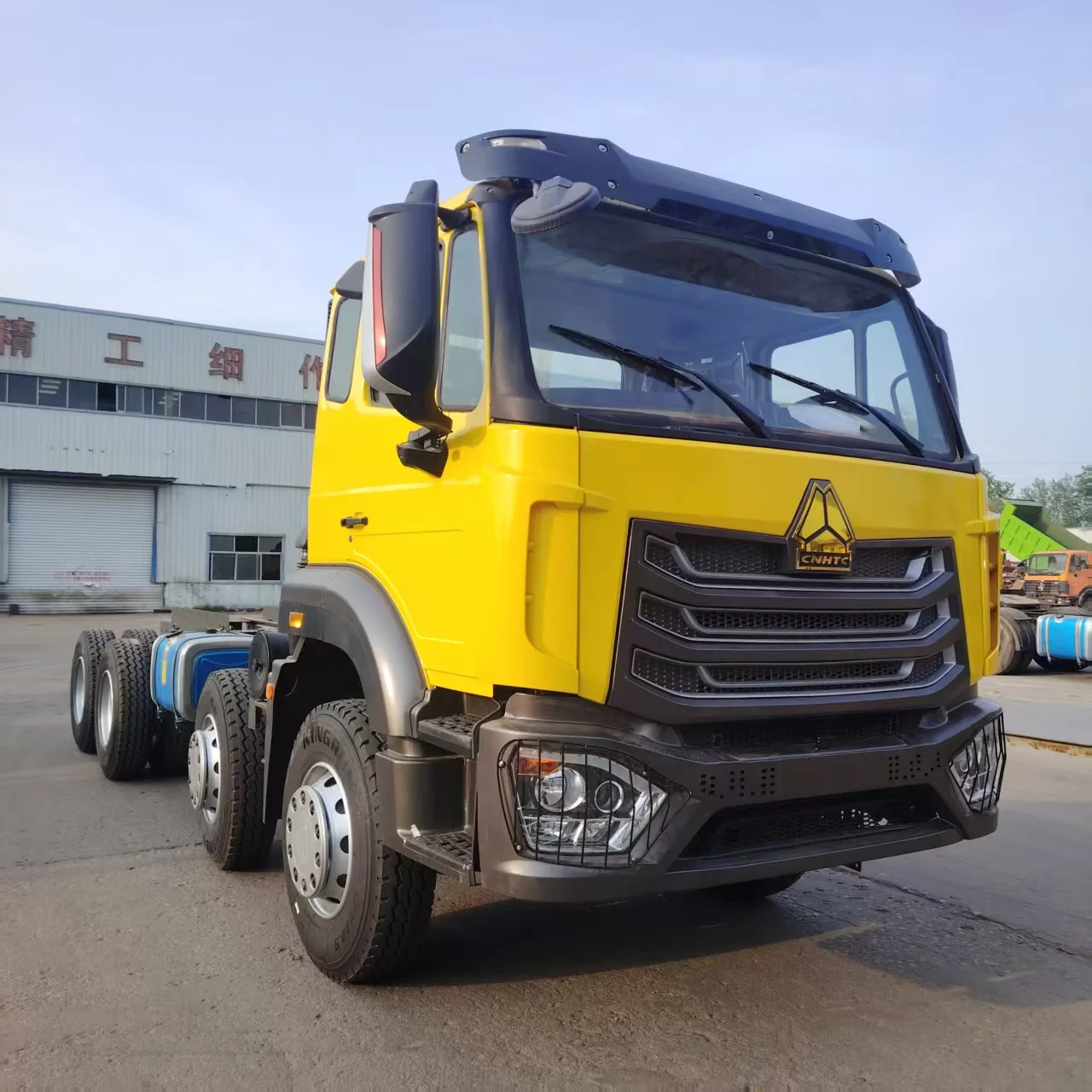

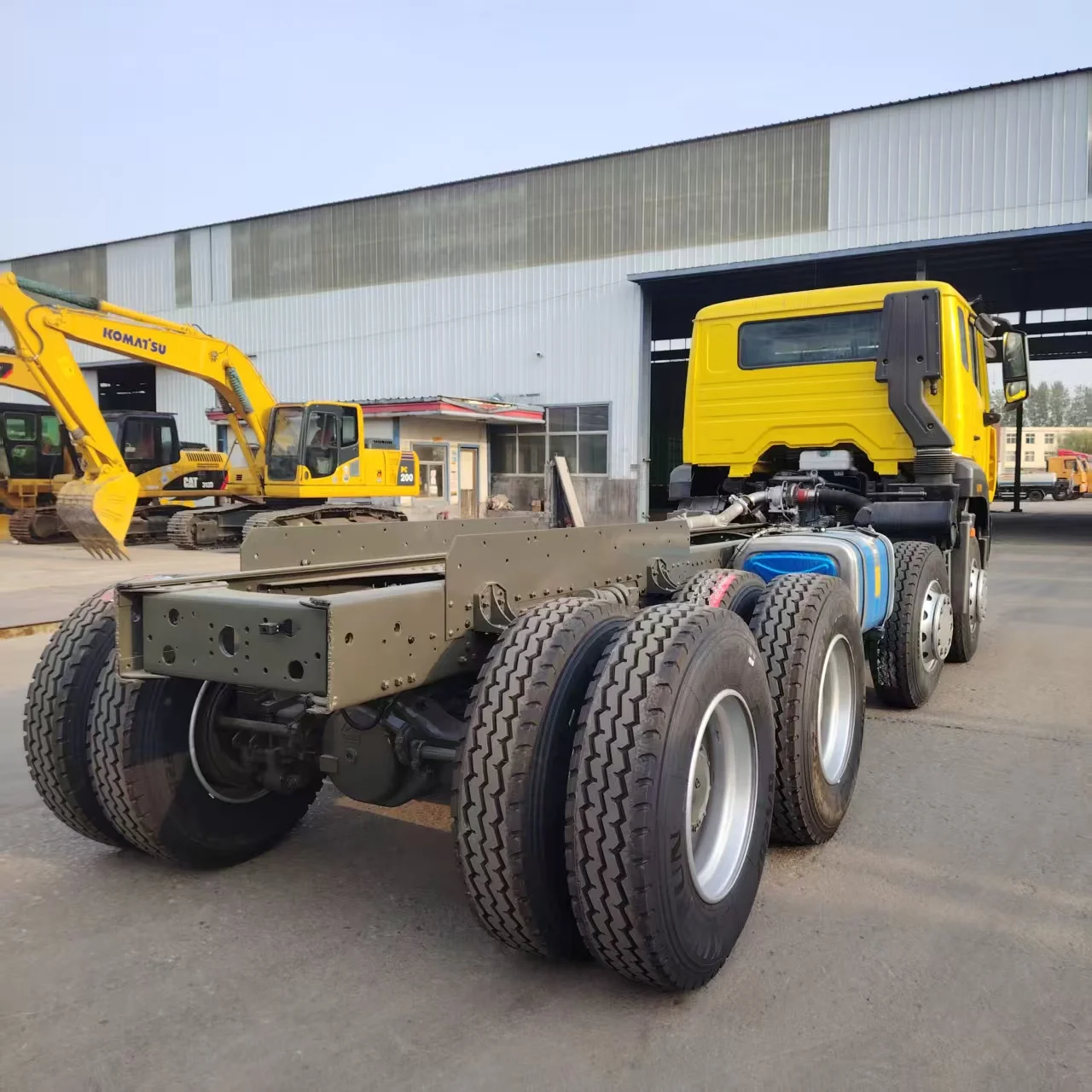

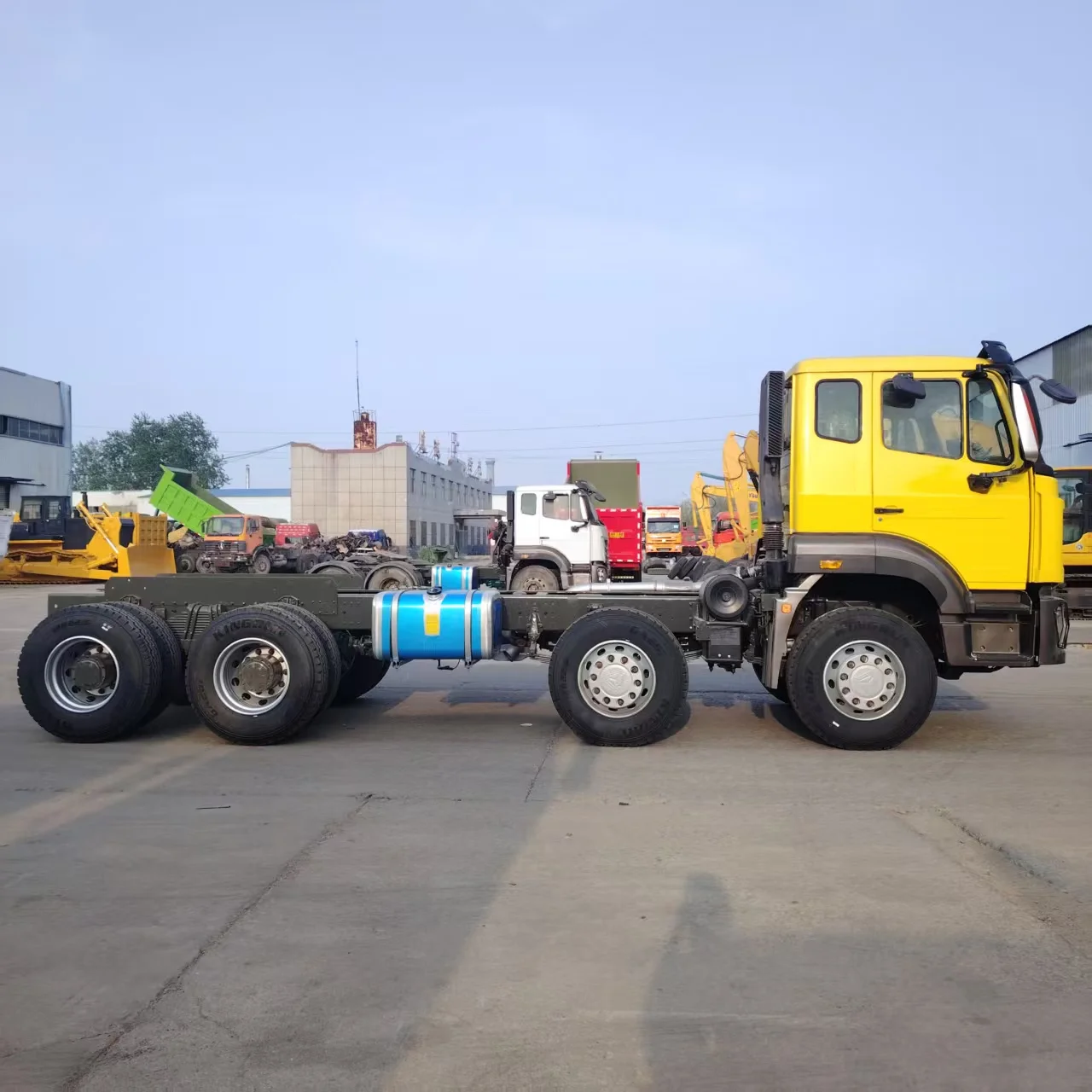

Hohan nx 8 * 4 chassis
The vast NX 8 × 4 chassis is a specialized foundation chassis for heavy-duty trucks, which can be adapted to mixer trucks, dump trucks, and various types of freight specific installations. This chassis is developed and manufactured by China National Heavy Duty Truck Group, adopting a lightweight structural design, and has the characteristics of abundant power and excellent load-bearing performance
Key Features & Materials
- Frame: High-strength MAN-tech steel, welded for rigidity; lighter but super durable, resists cracks and corrosion.
- Engine: Sinotruk MC07/WP12 (310–440HP), Euro 2–5 compliant; high torque, low fuel use, long service life.
| Item | Details |
|---|---|
| Drive Form | 8×4 (4 axles, 8 wheels) |
| Engine | MC07.31-50 / WP12.400E201 (310–440HP) |
| Transmission | HW13710 (10-speed) / HW19710 (12-speed) |
| Front Axle | 2×9.5T |
| Rear Axle | 2×16T |
| Wheelbase | 1800+3050+1350mm |
| Overall Dimension | 9075×2496×3250mm |
| Tare Weight | ~12,300kg |
| GVW | 44,000kg |
| Fuel Tank | 300–400L |

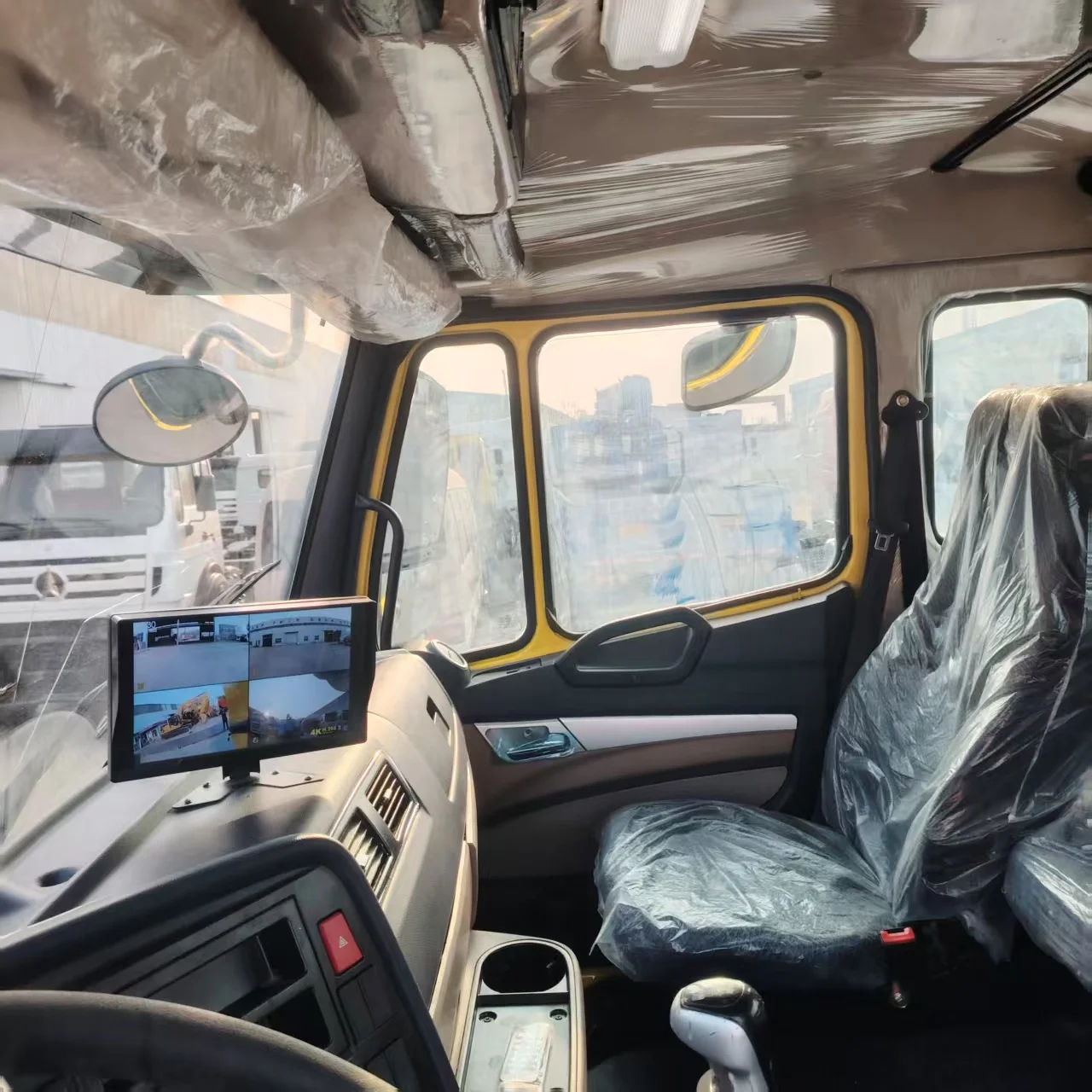

| Cabin | H77L, single sleeper, AC |
Why It's Great：Hohan nx 8 * 4 chassis
- Strong & Light: MAN-tech frame cuts weight but boosts strength, saving fuel.
- Big Payload: 44T GVW handles heavy cargo, ideal for construction and logistics.
Company Profile
We specialize in semi trailers and trucks, as well as used trucks and semi trailers. We have our own semi-trailer factory. We provide 24-hour service and one-year after-sales service. We value integrity and establish long-term cooperative relationships with our customers. We look forward to working with you.
FAQ
Q: What's the max payload?
A: Up to 31,700kg (GVW 44T minus tare weight).
Q: Is the engine reliable?
A: Yes, MC07/WP12 engines have B10 life over 800,000km.
Q: Can it handle rough roads?
A: Heavy-duty axles and strong frame work well on construction sites.
Q: What's delivery time?
A: 25–35 days after order confirmation
