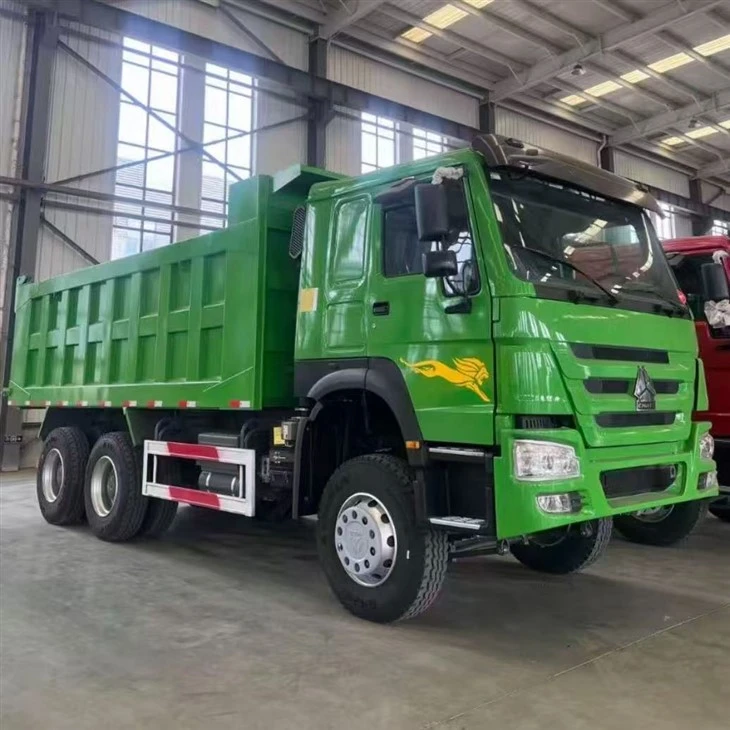

10 Wheel Tipper Truck for Sinotruk
This is one of our best-selling products. We possess extensive experience regarding the export procedures and specific details associated with this particular model, which ranks among our primary production lines. We place a strong emphasis on both the quality and performance of our trucks. We offer both brand-new and pre-owned vehicles; simply let us know your specific transportation requirements, and we will customize a truck perfectly tailored to your preferences.
Features & Materials
- Engine: 6-cylinder, water-cooled, turbocharged WD615.47 – Euro II compliant, built for long hours under load .
- Cargo Body: 8mm-thick bottom + 6mm-side manganese steel panels – resists dents from sharp rocks .
- Chassis: U-profile ladder frame (300×80×8mm) with cold-riveted cross members, paired with HC16 heavy-duty rear axles .
- Cab: All-steel forward-control cab with air conditioning, adjustable seats, and 55° hydraulic tilting – cuts driver fatigue .
- Transmission: HW19710 10-speed manual gearbox with 2 reverses, synchromesh for smooth shifts .
Key Specs
|
Category |
Details |
|
Max Power |
371hp (273kW) @ 2000rpm |
|
Torque |
1560N·m @ 1200-1500rpm |
|
Cargo Box Size |
5600×2300×1500mm |
|
GVW |
25,000kg |
|
Fuel Tank |
300L aluminum with lock cap |
|
Brakes |
Dual-circuit air + spring parking brake |
|
Tires |
13R22.5 radial (10+1 pieces) |
|
Wheelbase |
3800 + 1350mm |
|
Fuel Consumption |
~40L/100km |
Advantages
Durable
Manganese steel cargo body and reinforced frame handle harsh job sites without frequent damage .
Efficient
Hydraulic lift system unloads fast, saving time on site; 10-speed gearbox optimizes power for slopes .
Driver-Friendly
Air-conditioned cab and ZF power steering make long shifts less tiring .
Cost-Saving
Low maintenance needs and modular design reduce repair costs .
Services
Warranty
6 months or 30,000km coverage for engine, transmission, and drive axle .
Support
24/7 400 hotline, 5-minute response, and global parts network for quick replacements .
Maintenance
Routine checks every 5,000km (off-road) or 10,000km (highway); oil change at 10,000km .
Durable and powerful engine
We will carry out renovation, repair and maintenance on the Sinotruk engine to ensure a longer service life.
BRAND NEW TIRES
Change to brand new tires, inheriting theperfect genes at the beginning of vehicledesign, making every moment of drivingworry-free.

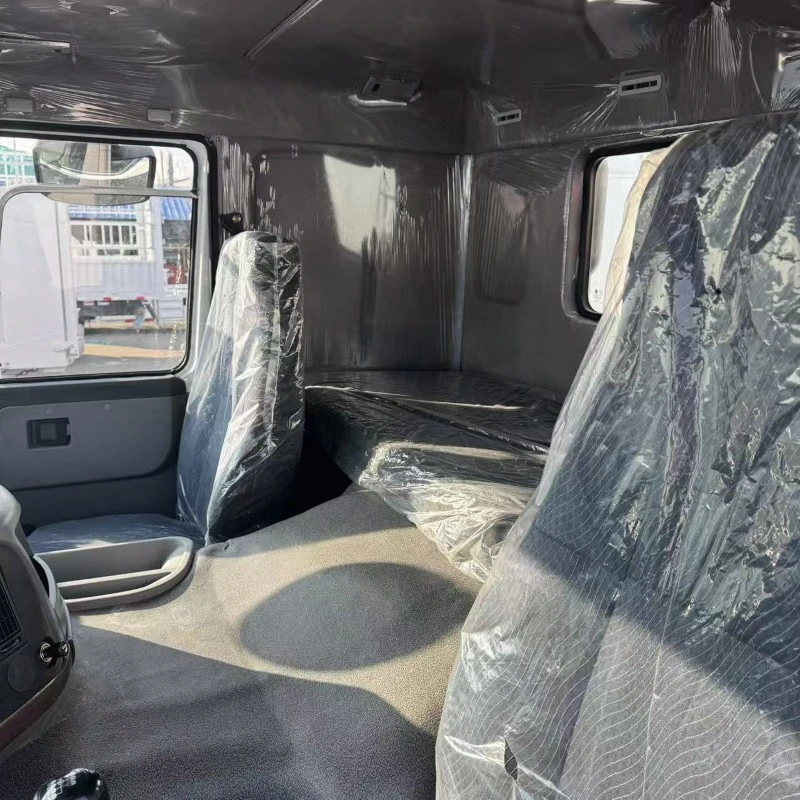

NEW INTERIOR
The cab adopts the same new materials as the originone, and carefully creates a comfortable driving spacto accompany you to drive with peace of mind.
FAQ
Q: Engine power is low – why?
A: Check for a clogged air or fuel filter; replace if dirty .
Q: Cargo body won't lift?
A: Inspect hydraulic fluid level or cylinder leaks .
Q: ABS light keeps flashing?
A: Clean mud off wheel sensors first; replace if issue persists .
Q: High fuel consumption?
A: Avoid overloading and check tire pressure – low pressure increases use .
