Bullet Point, Dongfeng
Chassis-mounted 11-cubic-meter Mixer. All trucks are made of high-quality steel and equipped with a reliable hydraulic system, featuring stable performance and reasonable structure. The mixer capacity ranges from 6 cubic meters to 14 cubic meters, which can be configured according to customer requirements to meet diverse needs.
The mixer capacity varies from 6 cubic meters to 14 cubic meters, and multiple transport vehicle devices are available as optional accessories.
As a professional and leading mixer truck manufacturer, we offer customization services to satisfy customers' personalized demands.Free graphic customization support is provided.
Product Parameters
| Item | Specification |
|---|---|
| Product Name | Concrete Mixer Truck |
| Overall Dimensions (L×W×H) | 12000 × 2550 × 3950 mm |
| Curb Weight | 14000 kg |
| Mixing Capacity | 11 m³ |
| Charging Speed | ≥ 3 m³/min |
| Discharging Speed | ≥ 2 m³/min |
| Residual Discharge Rate | ≤ 0.5% |
| Water Tank Capacity | 300 L |
| Water Pressure | 0.35 – 0.38 MPa |
| Chassis Parameters | |
| Chassis Brand | Dongfeng |
| Brake System | Air Brake |
| Fuel Type | Diesel |
| Engine Power | 300 HP |
| Front/Rear Axle Load | 7 / 13 Tonnes |
| Gearbox | 12-speed |
| Wheelbase | 4700 + 1350 mm |
| Tire Size | 10.00 – 22 |
Detailed pictures

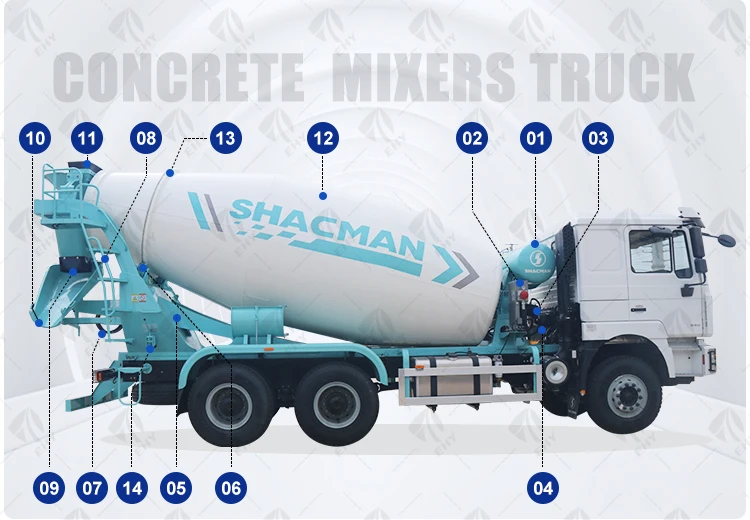

Mixer truck structure
01. Water Tank 04. Hydraulic Oil Cooler 07. Cleaning System 10. Anti-overflow Hopper 13. Roller Track
02. Reducer 05. Rear Support Bracket 08. Ladder 11. Feed Inlet 14. Control Rocker
03. Hydraulic System 06. Support Wheel 09. Discharging System 12. Stirring
Standard configuration
Mixing barrel Discharge System ladder
Hydraulic system motor Reducer
water tank Cleaning System Radiator
Company Profile
Sure, here's the revised English version with the company name and address updated: **Sute Silk Road (Jining) International Trade Co., Ltd. is a professional truck manufacturer located in Liangshan, Jining, Shandong, China**. With 20 years of experience in producing various special vehicles including crane trucks, concrete mixer trucks, transport vehicles, garbage trucks, municipal sanitation vehicles, road rescue vehicles, special service vehicles and road construction vehicles, we are committed to meeting the demands of the global market. We tackle various operational challenges of vehicles through optimized materials and design. Our factory is equipped with advanced raw material production lines, professional quality inspection centers, parts processing centers, general assembly centers and packaging centers.
Packaging and Delivery
Frequently Asked Questions
Inquire about the payment items. The payment term is negotiable, and long-term customers can enjoy favorable payment terms. The adoption of T/T and L/C depends on the cooperation duration, destination country and contract value.
(1) Under T/T terms, a 30% advance payment shall be made in advance, and the remaining 70% balance shall be paid before shipment.
(2) In terms of letter of credit terms, 100% irrevocable sight letters of credit are acceptable.
Inquire about your price level. As a leading Chinese manufacturer of crane trucks, tank trucks, sanitation vehicles, mixer trucks and other vehicles, we always offer optimal distributor prices. Based on comparisons and feedback from numerous clients, our prices are more competitive than those of trading companies.
Inquire about available shipping methods. For 80% of our cargo shipments, goods are transported by truck then shipped by sea to major continents including Africa, South America, the Middle East, Oceania and Southeast Asia via container shipping, ro-ro shipping or bulk cargo shipping.
(2) For inland neighboring countries of China such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan and Turkmenistan, we can deliver the equipment by road or railway.
(3) For urgently needed light spare parts, we can deliver them via international express services such as DHL, TNT, UPS and Fedex.
Inquire about the validity period of your quotations. Basically, our prices remain stable all year round. We only adjust prices under the following two circumstances:
(1) Significant fluctuations in the USD-CNY exchange rate caused by changes in international currency exchange rates.
(2) Rising labor costs and raw material costs.
Inquire whether you provide product warranties. We offer lifelong truck transportation services and a one-year free warranty for all products. Meanwhile, we provide free professional training and technical support to guide you in product maintenance. Original factory spare parts can also be delivered by air free of charge when needed.
