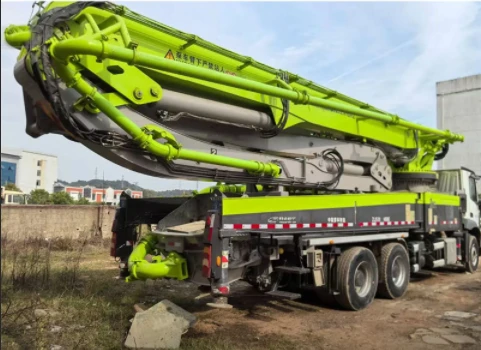

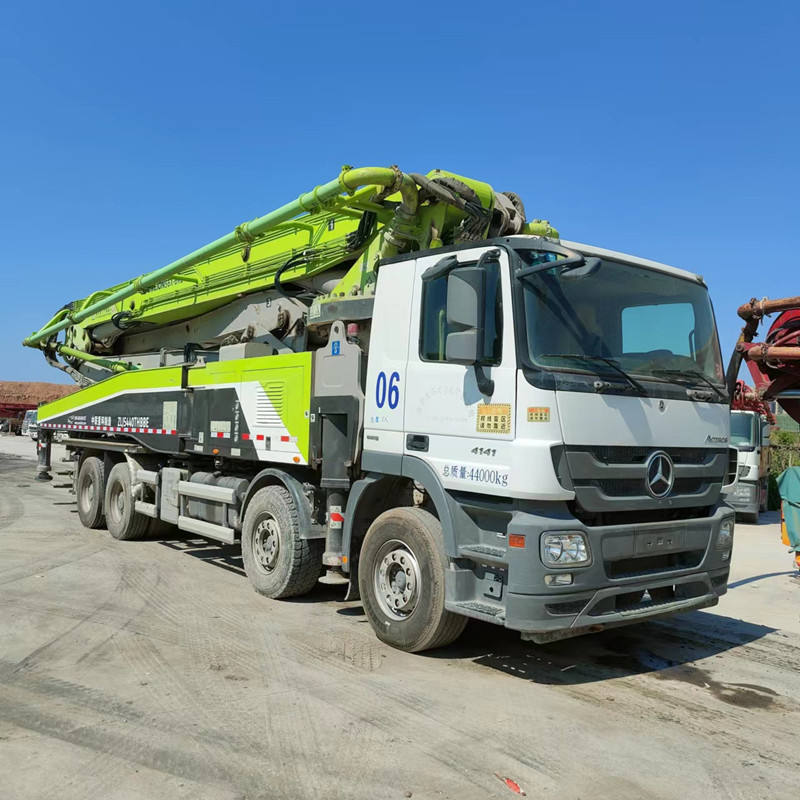

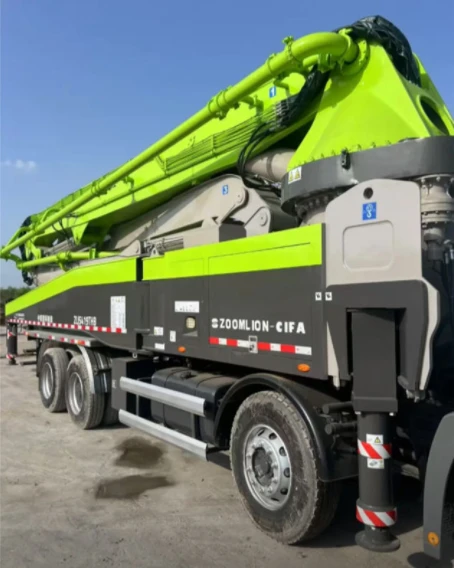

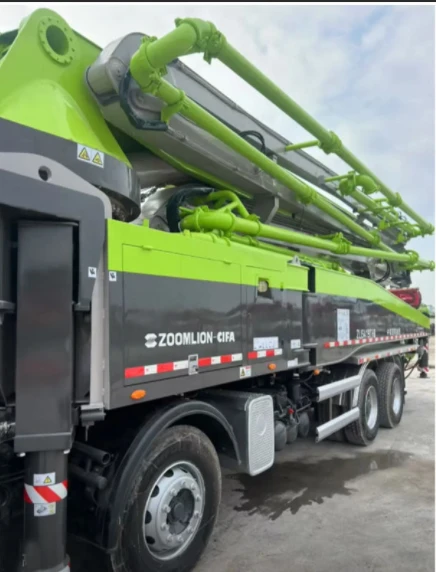

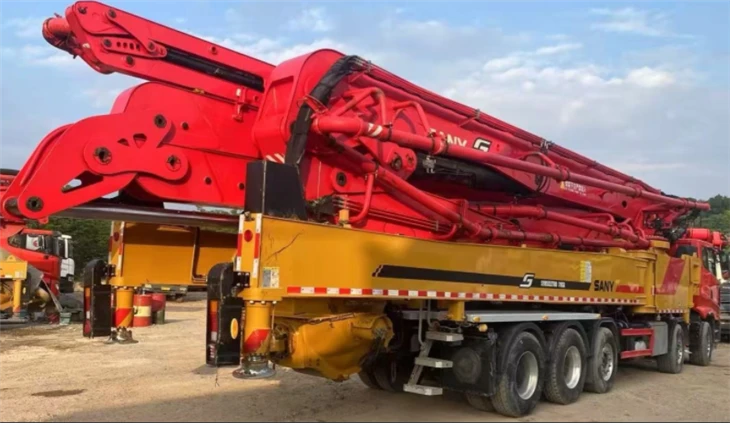

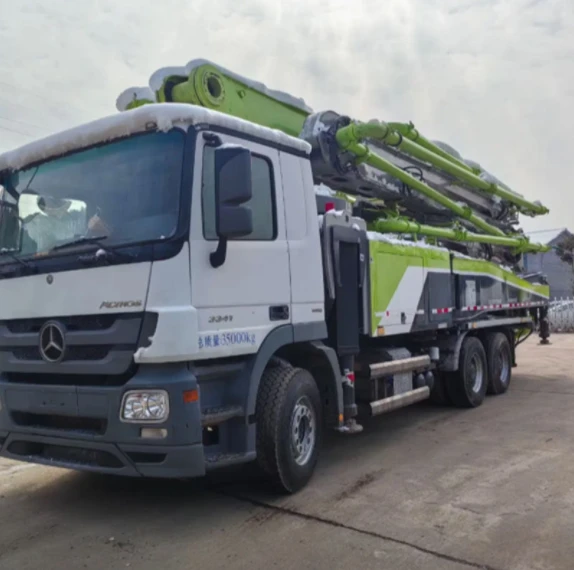

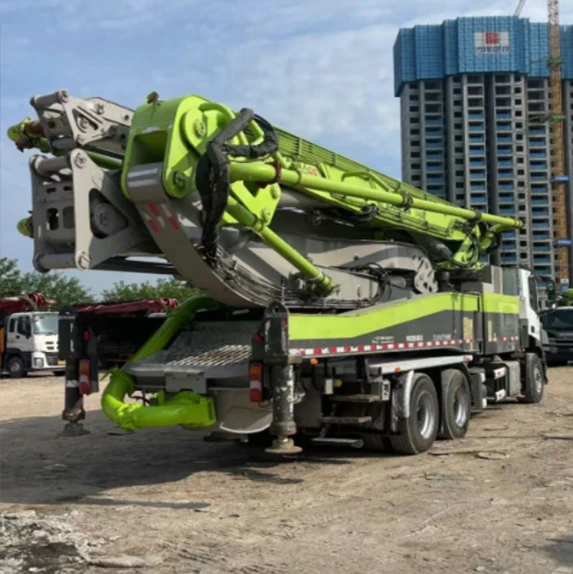

52 meter mobile truck mounted concrete pump truck
Concrete pump truck is a continuous conveying machinery that uses pressure to transport concrete along pipelines. It consists of a pump body and a conveying pipe. Divided by structure into piston type, extrusion type, and water pressure diaphragm type. The pump body is installed on the vehicle chassis and equipped with a telescopic or folding boom to form the pump truck.
The concrete pump truck is modified on the truck chassis. There are motion and power transmission devices, pumping and mixing devices, material distribution devices, and other auxiliary devices installed on the chassis. The power of the concrete pump truck is transmitted to the hydraulic pump unit or rear axle through the power transfer case. The hydraulic pump drives the piston to drive the concrete pump. Then, the concrete can be transported to a certain height and distance by using the conveying pipes on the pump truck.
Product Configuration
| Outline size |
11260*2500*3990 mm |
|
| Total weight |
31000 kg |
|
| chassis | Speed |
90 kilometers per hour |
| wheelbase |
4800+1350 mm |
|
| tire |
12.00R22.5 |
|
| engine | engine | Weichai |
| Strength |
320 kilowatt |
|
| Maximum Torque |
2100~1400 |
|
| displacement |
10.677 L |
|
| emission standard | Euro 3/Euro 5 | |
| Pumping system | Concrete pump pressure |
8 MPa |
| Diameter of conveying cylinder x stroke |
230×1600 mm |
|
| Maximum diameter of pumped concrete |
40 mm |
|
| filling height |
1580 mm |
|
| Range of concrete slump |
8~23 cm |
|
| Place the suspension rod | Reaching height |
52 m |
| Reaching Depth |
29 m |
|
| radius of gyration |
37.3 m |
|
| Rotation angle |
270 |
|
| Stabilizer span | Longitudinal span of stabilizer |
7700 mm |
| Lateral span of front stabilizer |
7300 mm |
|
| Lateral span of rear stabilizer |
7740 mm |
|
| other | Lubrication method | automatic lubrication |
| control method | Manual/Remote Control | |
| Water tank capacity |
400 L |
|
Product Advantages
Easy to operate: This pump truck is equipped with an advanced electronic control system with a simple and intuitive control panel, allowing operators to easily master its operation.
Stability: The pump truck adopts advanced hydraulic system and chassis technology to ensure stability and safety. In addition, it is equipped with a engine that can provide power output to meet diverse job site requirements.
Convenience: The pump truck adopts a fully detachable design, which facilitates transportation and loading and unloading, thereby reducing transportation costs and operating time.
Efficiency: The pump truck provides efficient pumping capacity and operational performance, which can quickly complete concrete pumping tasks and accelerate construction progress.
Reliable Quality: Pump truck manufacturer with rich production and sales experience, ensuring reliable product quality.
Versatility: The pump truck offers multiple operating modes and optional accessories to meet different project requirements. It can also be equipped with an automatic cleaning system and a remote control system to improve construction efficiency and safety.
Application scenarios

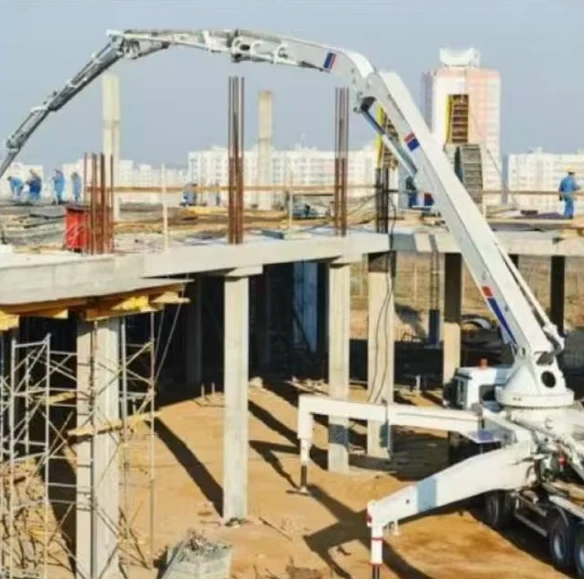

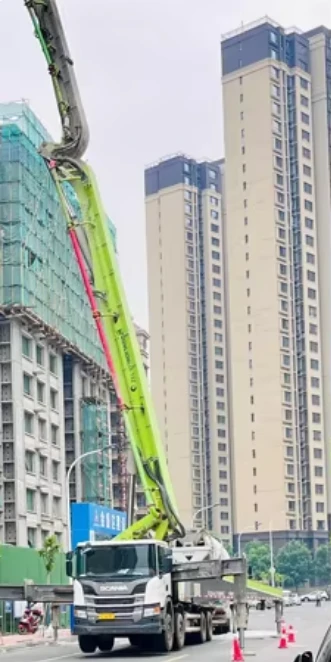

Urban housing construction projects: Long arm pump trucks can directly pour standard floor slabs, beams, columns, and roofs without the need for tower cranes for transportation, and continuous pouring without cold joints

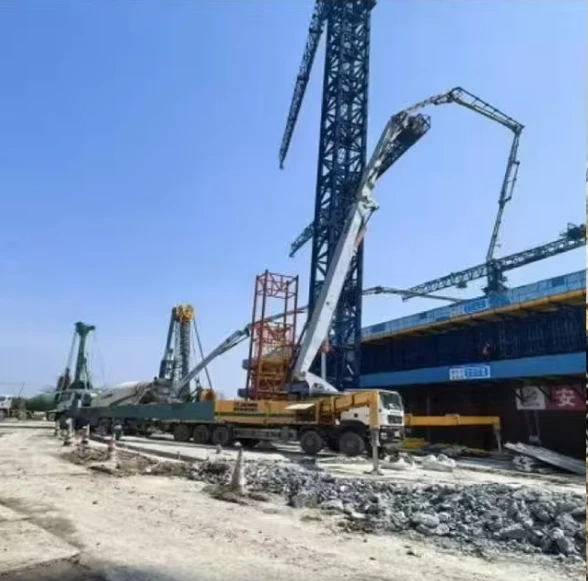

Bridge municipal transportation engineering: bridge piers, columns, box girders, cover beams, anti-collision walls, bridge deck paving, long arm pump trucks covering multiple sets of bridge piers in one station
Large scale infrastructure and water conservancy projects: apron, freight yard, dock revetment, cargo warehouse foundation, navigation tower base large area floor pouring

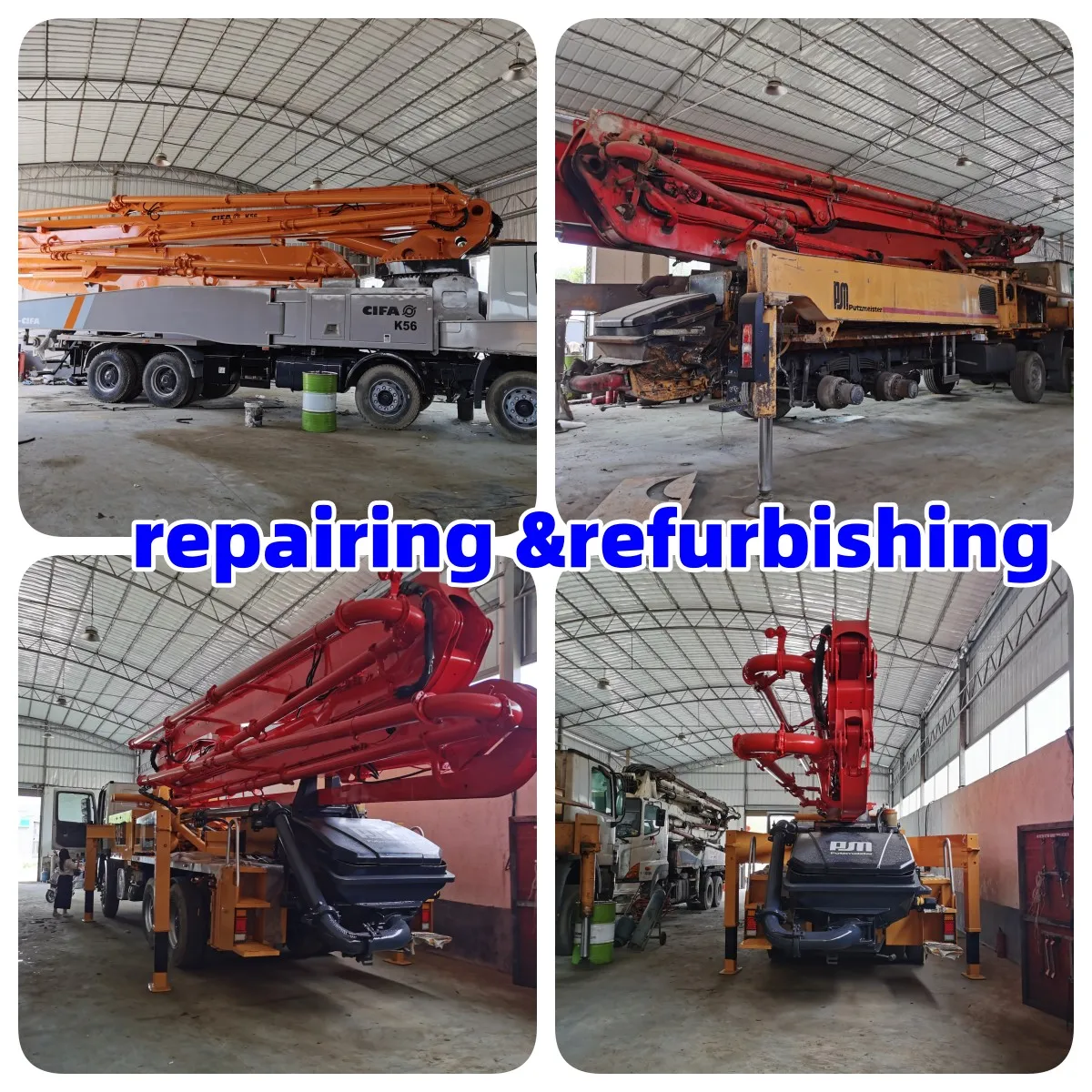

Our production workshop
Supplier Introduction
Sute Silk Road Automobile Trading Co., Ltd. is a truck manufacturer from Jining, Shandong, China. We have nearly 20 years of production history in this field of trucks, with direct sales from manufacturers, high quality, and the most favorable prices. Our products can be customized according to various needs. And unique company logos can be customized. The factory adopts advanced automation equipment. The steel welding adopts automatic submerged arc welding technology. Compared with traditional manual welding methods, the connection points are more perfect, flawless, and durable.We specialize in semi trailers and trucks, as well as second-hand trucks and semi trailers. We have our own semi trailer factory. We provide 24-hour service and one-year after-sales service. We prioritize integrity and establish long-term partnerships with our customers. We look forward to working together with you!
Why choose us
Product transportation and delivery
We will conduct comprehensive supervision from the factory to the customer's destination We can also help mark purchase order contracts, test product quality, ensure timely delivery, and accommodate special orders
The payment deadline can be negotiated, and long-term customers will have favorable payment terms. TT,L/C,D/P, It depends on the cooperation time, country, and contract value.
Frequently Asked Questions
Yes, we can print your private logo according to your request.
Of course, our factory is located in Jining, Shandong, China. You are welcome to visit our factory!
75% of our products are exported to various parts of the world.
All raw material checked once it arrive our factory.
.All pieces and logo and all details checked during production.
All packing details checked during production.
All production quality and packing checked on final inspection after finished.
