Low bed semi trailer is usually used to transport heavy vehicles (such as vehicles, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, engineering machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.), etc. The lower the center of gravity, the better the stability and safety, and the better the ability to transport ultra-high loads and pass through elevated observatories. The load of a low chassis semi trailer varies depending on the number of axles and the size of the tires. The more axles there are, the greater the load, with a load range between 20 150 tons.
| Item | Specification Details |
|---|---|
| Product Name Series | 2 Axle Lowboy Semi Trailer3 Axle Lowboy Semi Trailer4 Axle Lowboy Semi Trailer |

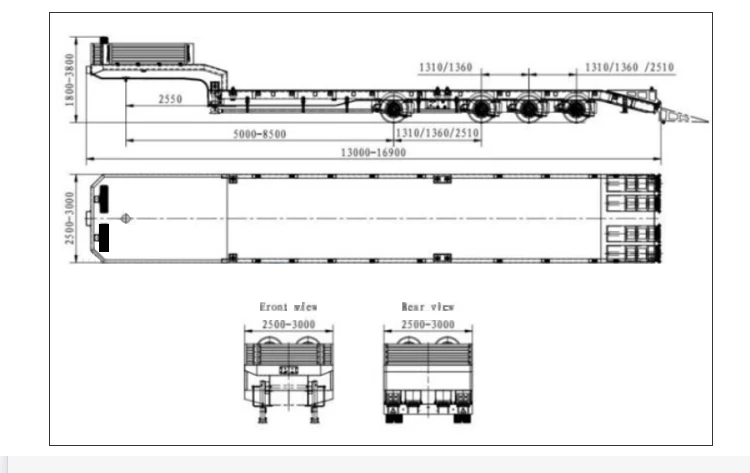

| Overall Dimension (mm) | 2-axle: 12500300011003 axle: 13000300011004-axle: 1400030001100 |
| Payload Capacity | 2 Axle: 40,000 KG3 Axle: 60,000 KG4 Axle: 80,000 KG |
| Deck Plate Thickness | Optional: 4mm Checkered Plate / 5mm Checkered Plate |
| Axle Configuration | 2×13 Ton Capacity (Brands Optional)3×13 Ton Capacity (Brands Optional)4×13 Ton Capacity (Brands Optional) |
| Loading Ramp | Hydraulic Ladder or Mechanical Spring Ladder |
| Main Longitudinal Beam | Height: 500mmTop Flange: 16mm, Middle Web: 8mm, Bottom Flange: 18mmMaterial: Q345B High Strength Steel |
| Side Cross Beam | 250mm I beam + 20mm Channel SteelMaterial: Q235 Carbon Steel |
| Low Bed Platform | 4mm Thick Diamond Anti-Slip Plate |
| Suspension System | Standard Mechanical Suspension; Air Suspension Optional |
| Leaf Spring | Two Options for Overseas Market:1. 90mm(Width) ×13mm(Thickness) ×10 Layers2. 100mm(Width) ×12mm(Thickness) ×12 Layers |
| Tire | Standard: 8 units 12R22.5 / 11.00R20; Other Sizes Customizable |
| Wheel Rim | Standard: 8 units 9.00-22.5 / 11.00R20; Other Sizes Customizable |
| Kingpin | 2 inch / 3.5 inch Bolt Type Kingpin |
| Landing Gear | 28 Ton Two-Speed Heavy Duty Landing Legs |
| Brake System | Dual Air Brake Chambers, WABCO Brake Valve, 45L Air Reservoir; ABS System Optional |
| Electrical System | LED Tail & Marker Lights, 7 pin Standard Harness, 24V Voltage |
| Standard Accessories | 1 Tool Box with Complete Standard Trailer Maintenance Tools |
| Surface Painting Process | 1. Shot Blasting to Remove All Rust & Scale2. Anti Corrosion Primer Undercoat3. Polyurethane Top Finish Paint4. Custom Color Available Per Client's Request |
Customer reviews
About Us

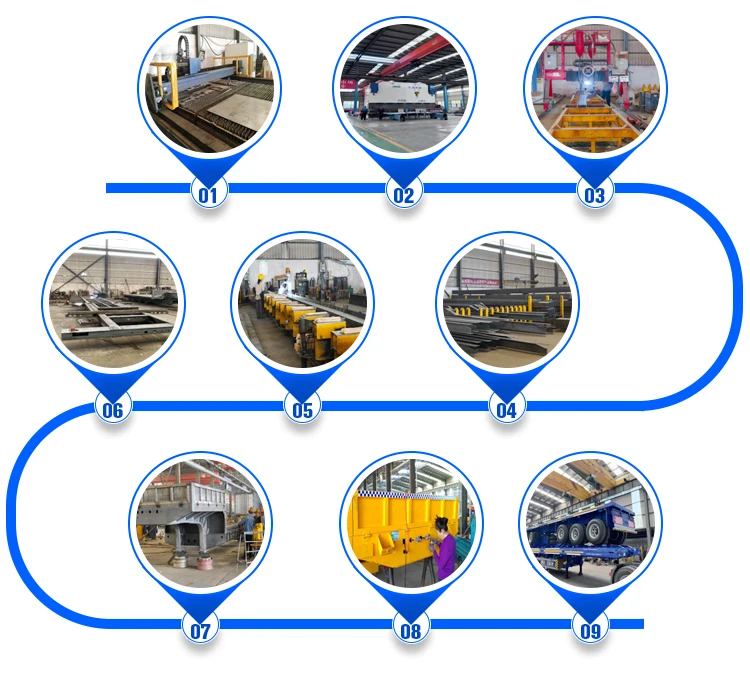

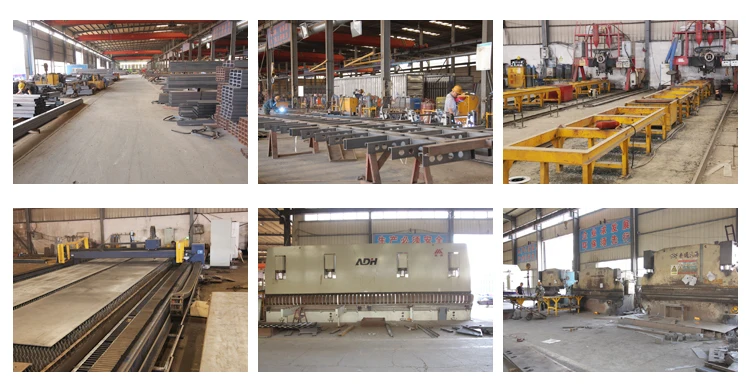

Sute Silk Road Automobile Trading Co., Ltd. is a truck manufacturer from Jining, Shandong, China. We have nearly 20 years of production history in this field of trucks, with direct sales from manufacturers, high quality, and the most favorable prices. Our products can be customized according to various needs. And unique company logos can be customized. The factory adopts advanced automation equipment. The steel welding adopts automatic submerged arc welding technology. Compared with traditional manual welding methods, the connection points are more perfect, flawless, and durable.We specialize in semi trailers and trucks, as well as second hand trucks and semi trailers. We have our own semi trailer factory. We provide 24-hour service and one year after sales service. We prioritize integrity and establish long term partnerships with our customers. We look forward to working together with you!
Our address
QuanPu Industrial Park, Liangshan, Jining, Shandong
Phone Number
+8615265769333
15166736520@163.com
FAQ
Does your company have its own factory?
Yes, we have our own factory with a history of several years in China. Our factory is very famous for manufacturing various trailers in Shandong, China
How can we ensure quality?
Before mass production, it is always a sample before production; The final inspection is always conducted before shipment
What is your term of payment?
30% down payment before producing and 70% balance payment before shipping.
