Tank truck trailers are specially designed for transporting liquids or gases, made of corrosion-resistant materials, with good sealing and safety valve systems, used for safe transportation of petroleum, chemicals, and other liquids and gases. They play an important role in modern logistics, but also require strict management and operation to ensure safety.

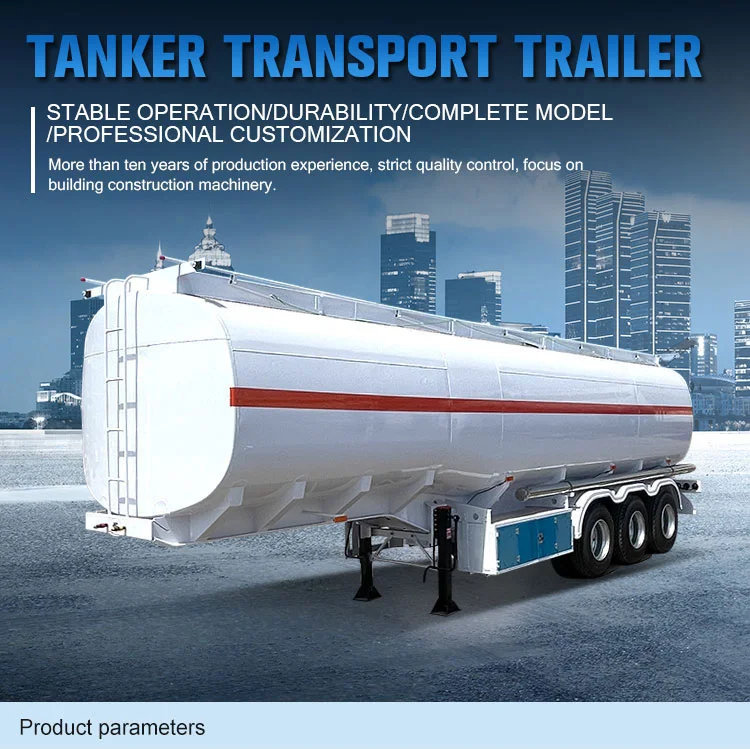

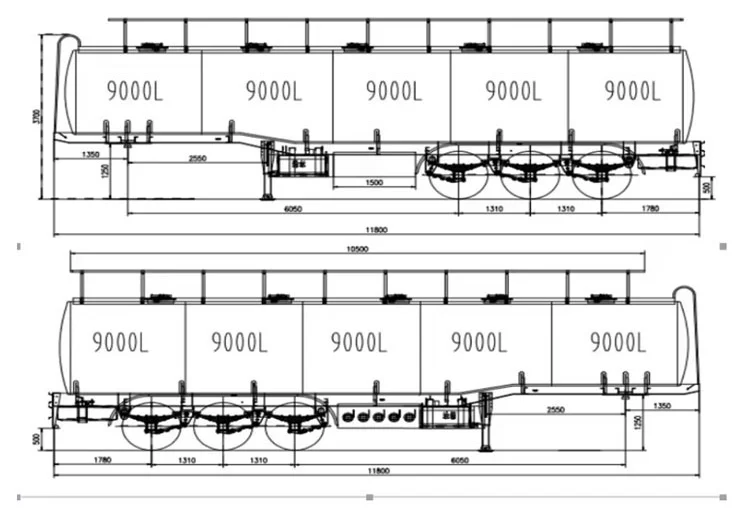

| Liquid Fuel / Water Tank Truck Semi-Trailer Specification | |
| Category | Specification |
| Basic Specification | |

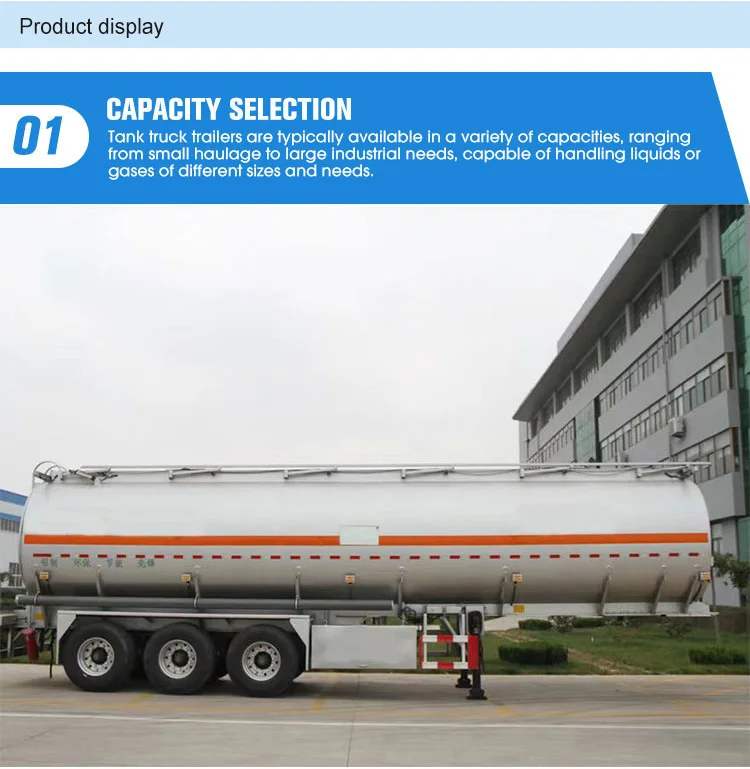

| Tank Volume (Optional) | 10-30 CBM / 10000-30000 L; 30-60 CBM / 30000-60000 L; >60 CBM / 60000 L |
| Axle Quantity | 2 Axles; 3 Axles; 4 Axles |
| Rated Load Capacity | 40000 kg; 60000 kg; 75000 kg |
| Tire Quantity | 8 PCS; 12 PCS; 16 PCS |
| Tire Size | 825R20, 1000R20, 1100R20, 1200R20, 12R22.5 |
| Wheelbase (mm) | 1310 mm |

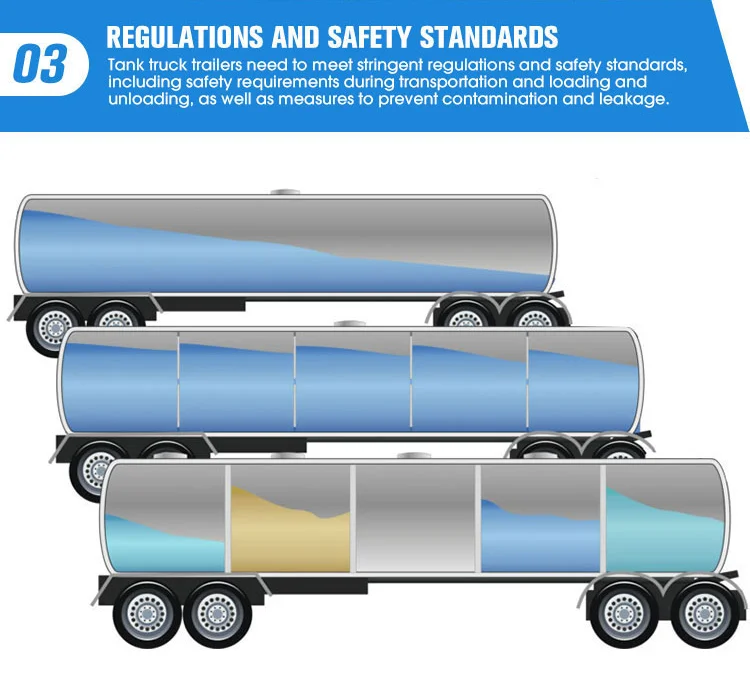

| Tank Compartments | 1-6 Compartments |
| Tank Body & Material | |
| Body Material | Carbon Steel / Stainless Steel / Aluminum Alloy |
| Tank Thickness | 5 mm (Main Body); 6 mm (Sealed End) |
| Main Beam Material | Q345B Manganese Plate, Automatic Submerged Arc Welding |
| Main Beam Size | Top Plate 14 mm, Bottom Plate 16 mm, Web 8 mm, Height 500-520 mm |
| Running Gear & Suspension | |
| Axle Type | 13T / 16T / 18T American / German Style Axle |
| Suspension | Heavy Duty Mechanical Suspension with Leaf Spring / Bogie / Air Suspension |
| Landing Gear | 28T Load Capacity, 80T Static Lifting Capacity |
| King Pin | 2" or 3.5" Interchangeable |
| Brake & Electrical System | |
| Brake System | Dual-Line Brake System with Automatic Brake System / Chambers |
| Brake Air Chamber | 4 Dual Chambers + 2 Single Chambers |
| Electrical System | 24V, 7 Core Socket, EU Standard Lights |
| Safety & Auxiliary Equipment | |

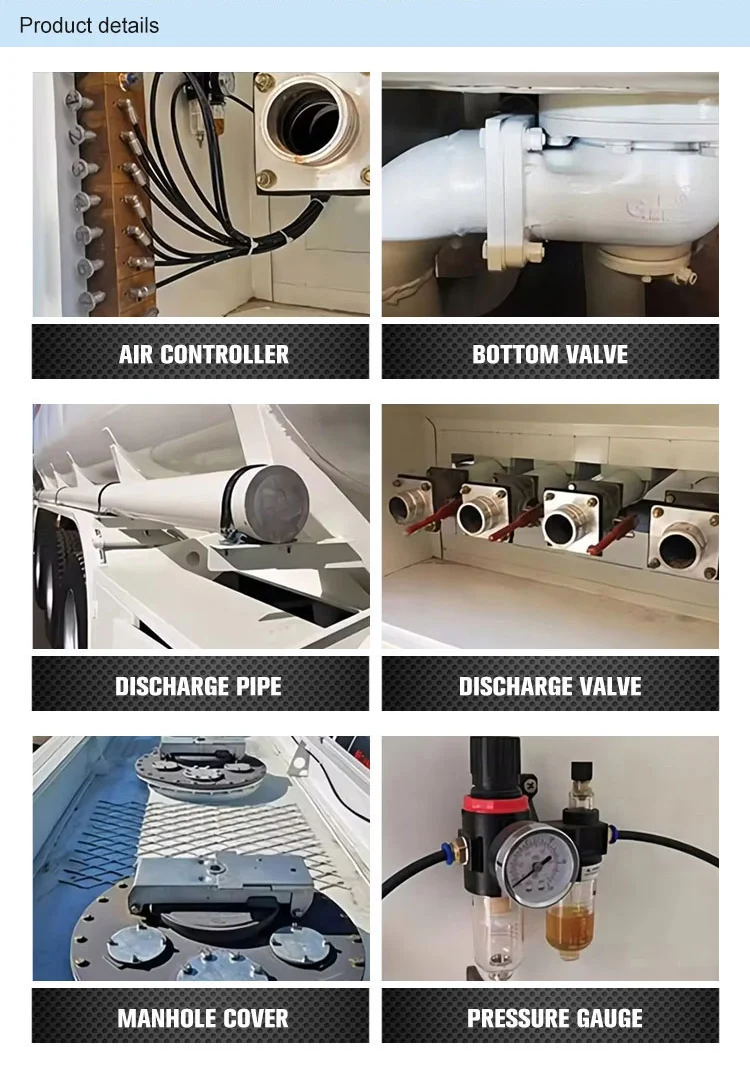

| Manhole | 2 PCS |
| Fire Extinguisher | 2 x 4 kg |
| Anti-Slip Walkway | Steel Anti Slip Walkway |
| Handrail | Manual Steel Handrail |
| Tool Box | 1 Set Standard Tools |
| Spare Tire Carrier | 2 Sets |
| Customization Options | |
| Color & Logo | As Per Buyer's Request |
| Pin Height | Matched with Tractor Saddle Height |
| Painting | 3 Coat Painting, Any Color Available |
| Application | For Liquid Fuel / Water Transportation |

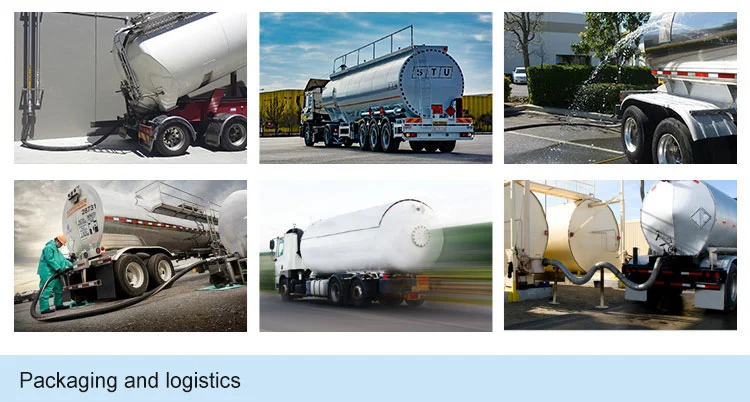

Half oil tankers are used in a wide range of industries, including petroleum, chemical, energy, agriculture, water, and food. They are used to safely and effectively transport various liquid products, such as petroleum, chemicals, and liquefied gases, from production sites to end users, ensuring smooth supply chains and product safety
The packaging design of the goods meets the transportation requirements and standards of the export destination. This includes selecting appropriate packaging materials, internal fillers, and support structures to maximize the protection of the goods from damage. After the goods arrive at the destination, provide timely after sales service and support to ensure customer satisfaction and resolve any potential issues.
About Us
Sute Silk Road Automobile Trading Co., Ltd. is a truck manufacturer from Jining, Shandong, China. We have nearly 20 years of production history in this field of trucks, with direct sales from manufacturers, high quality, and the most favorable prices. Our products can be customized according to various needs. And unique company logos can be customized. The factory adopts advanced automation equipment. The steel welding adopts automatic submerged arc welding technology. Compared with traditional manual welding methods, the connection points are more perfect, flawless, and durable.We specialize in semi trailers and trucks, as well as second hand trucks and semi trailers. We have our own semi trailer factory. We provide 24 hour service and one year after sales service. We prioritize integrity and establish long term partnerships with our customers. We look forward to working together with you!
Our address
QuanPu Industrial Park, Liangshan, Jining, Shandong
Phone Number
+8615265769333
15166736520@163.com
FAQ
Q: What is the delivery time?
A: 7-20 days after receiving the deposit.
Q: What is the warranty period?
Answer: 12 months or 2000 working hours after shipment, whichever comes first.
Q: How long will it take for you to respond to customer inquiries?
Q: What is the minimum order quantity?
Answer: The minimum order quantity is 1 piece

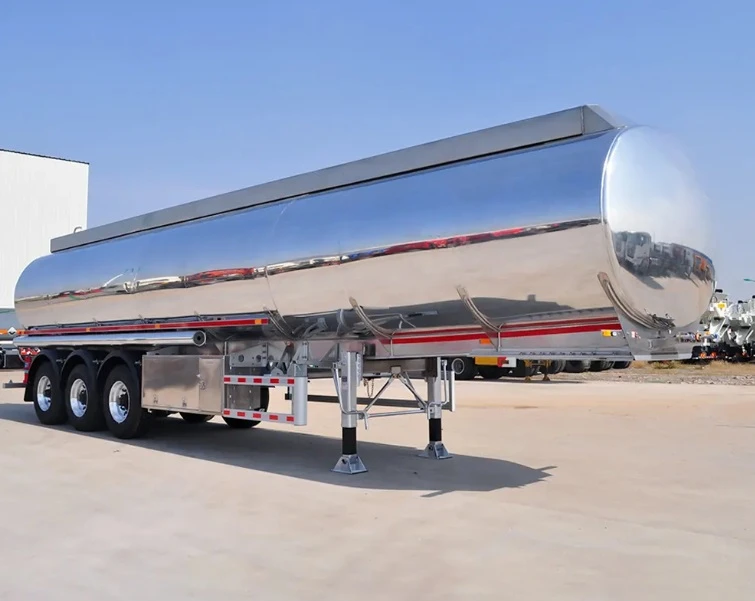

Hot Tags: 4 axle fuel tank semi trailer, China 4 axle fuel tank semi trailer manufacturers, factory
