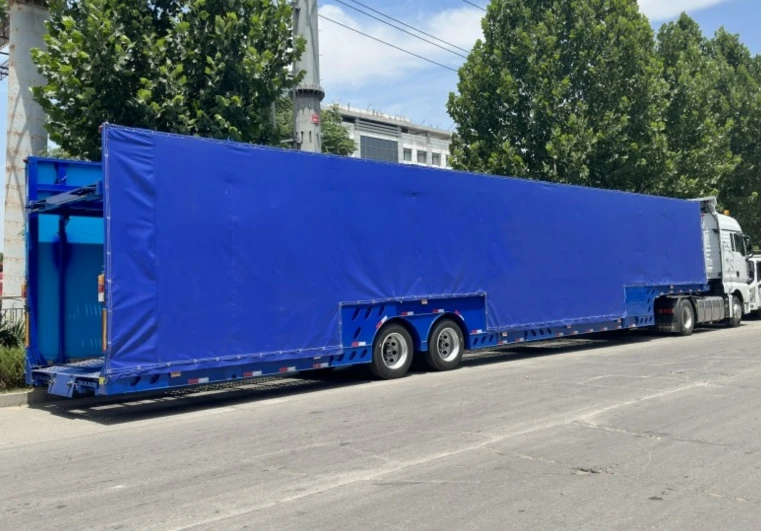

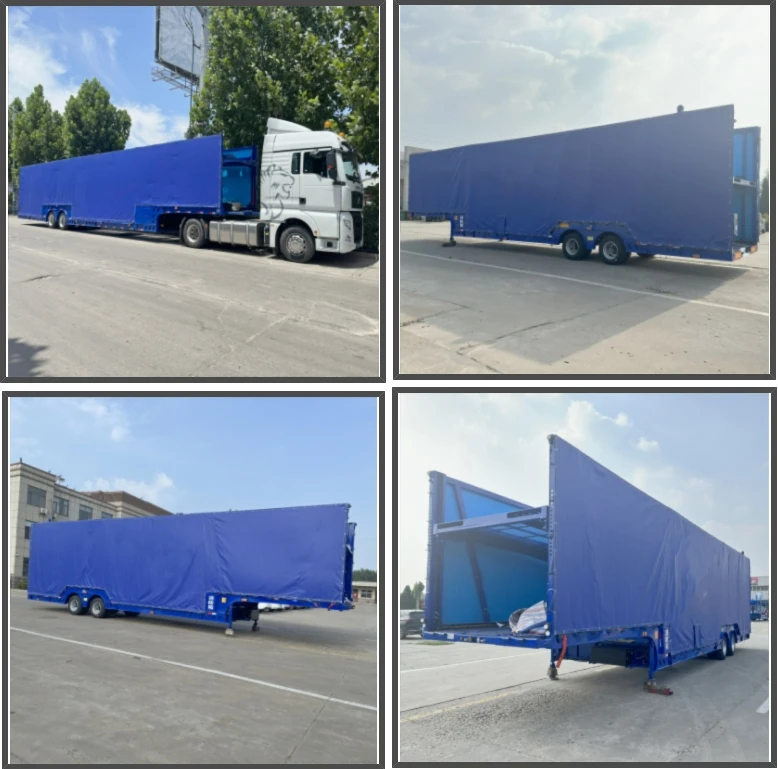

The 2-axle car carrier semi
trailer trailer is designed to effectively transport passenger cars by truck. Modern car trailers can be opened or closed. Most commercial trailers have built in ramps for loading and unloading cars, as well as power hydraulic systems for raising and lowering ramps to achieve independent accessibility

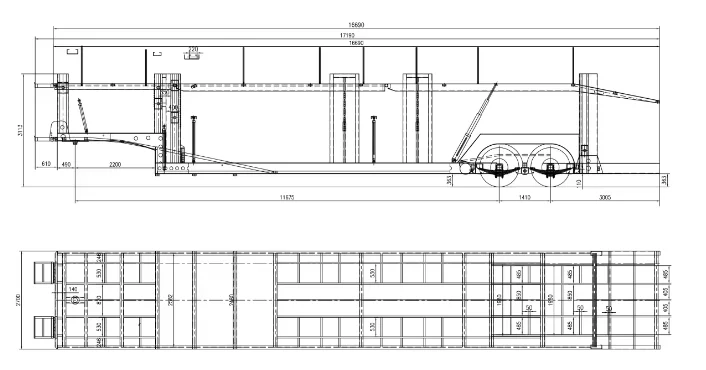

Flatbed Trailer Technical Specifications
|
Item |
Specification |
|---|---|
|
Overall Dimension |
Approx. 16690×2700×3000mm (Height adjustable per tractor) |
|
Kingpin Height / Loading Height |
Adjustable according to tractor dimension |
|
Trailer Type |
2-deck hydraulic lifting design, front & rear deck separately liftable |
|
Welding Standard |
Qualified welding per national standard |
|
Main Beam |
High-strength T700 steel, beam height 300mm; Top/bottom flange 12mm, web 8mm |
|
Support Pillar |
Reinforced structure |
|
Tire
|
11R22.5, 4 pcs, Triangle brand |
|
Rim |
8.25×22.5 steel rim, 4 pcs |
|
Axle |
Custom low center axle, 13T × 2 axles |
|
Suspension |
2-axle heavy duty mechanical suspension |
|
Landing Gear |
1 set factory standard |
|
Kingpin |
2 inch (50#) |
|
Brake System |
30/30 brake chamber, WABCO valve + 4S/2M ABS system |
|
Electrical System |
24V full LED lights |
|
Spare Tire Bracket |
1 set |
|
Tool Box |
1 set |
|
Hydraulic System |
High quality hydraulic system, powered by tractor PTO (PTO supplied by client) |
|
Standard Accessories |
16 pcs deck lashing devices; 2 pcs × 8kg fire extinguishers |
|
Painting & Coating |
SA2.5 sandblasting, zinc epoxy primer + polyurethane topcoat, anti corrosion |
|
Color & Logo |
Customized as client's requirement |
|
Pre-shipment Treatment |
Anti rust wax coating and chassis lubrication for sea shipment protection |
Axle
BPW/FUWA/LEAO axles are optional. Integrate advanced low-alloy axle beams, with no welding process for the entire axle beam. Strong load-bearing capacity and high bending strength. The axle can be maintained free for up to 3 years/400000 kilometers.
Landing Gear
The warranty period for Chinese brand/JOST landing gear exceeds 5 years. The gearbox uses low temperature high-quality chassis oil with a rated service temperature of -30 ° C to 120 ° C.
Suspension and fracture system
Pause: German or American mechanical and airbag suspension options are available. Braking system: T30/30 spring brake chamber. WABCO valve, ABS/EBS system optional. Double line brake pipe.
Tire
Famous brands such as Double Coin, Linglong, Michelin, Triangle, and Bridgestone are available for selection. Better wear resistance.
About Us
Sute Silk Road Automobile Trading Co., Ltd. is a truck manufacturer from Jining, Shandong, China. We have nearly 20 years of production history in this field of trucks, with direct sales from manufacturers, high quality, and the most favorable prices. Our products can be customized according to various needs. And unique company logos can be customized. The factory adopts advanced automation equipment. The steel welding adopts automatic submerged arc welding technology. Compared with traditional manual welding methods, the connection points are more perfect, flawless, and durable.We specialize in semi trailers and trucks, as well as second-hand trucks and semi trailers. We have our own semi trailer factory. We provide 24 hour service and one year after sales service. We prioritize integrity and establish long term partnerships with our customers. We look forward to working together with you!
Our address
QuanPu Industrial Park, Liangshan, Jining, Shandong
Phone Number
+8615265769333
15166736520@163.com
Customer reviews
Packaging and Delivery
FAQ
Q: How can we ensure quality?
A: Always have pre production samples before mass production
Always conduct final inspection before shipment
Q: What can you purchase from us?
A: Flat container trailer, tractor, dump truck, tank trailer, concrete mixer truck, etc
Q: What is your term of payment?
A: 30% down payment before producing and 70% balance payment before shipping.
Hot Tags: 3-axle transport semi trailer, China 3-axle transport semi trailer manufacturers, factory
