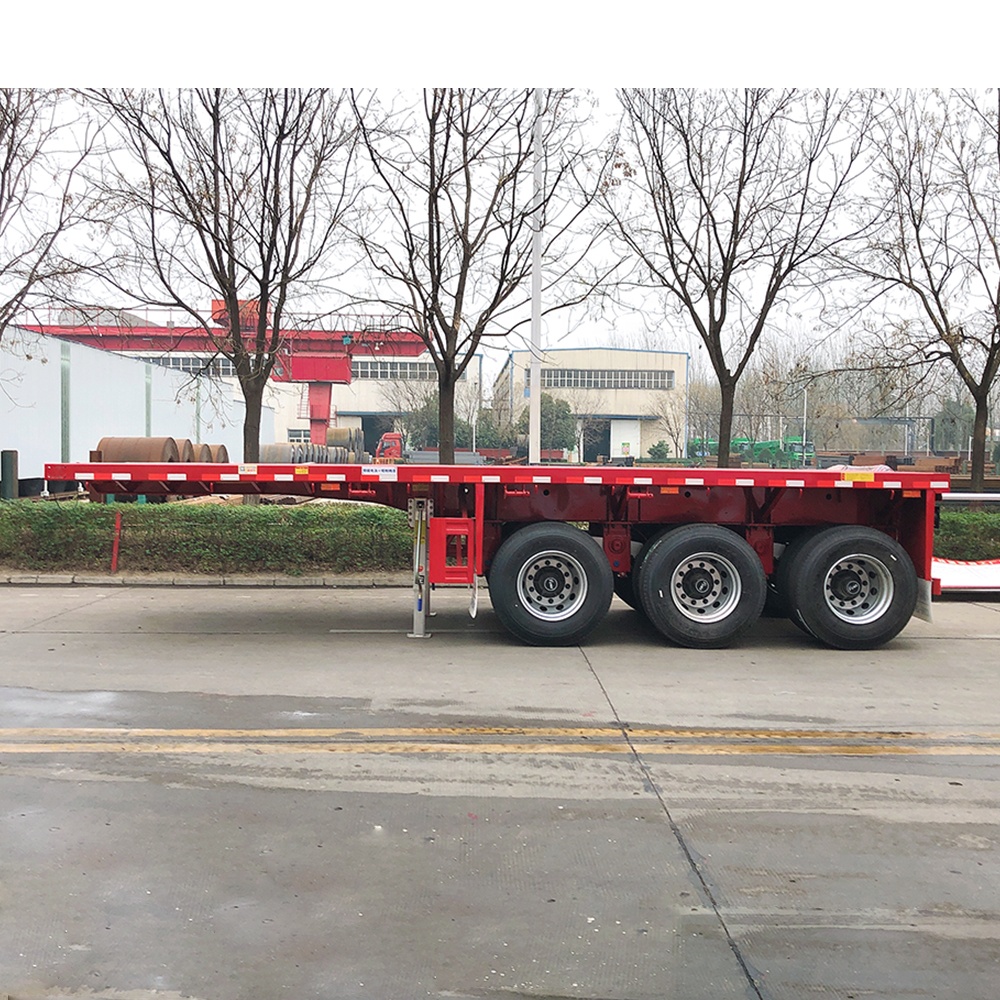

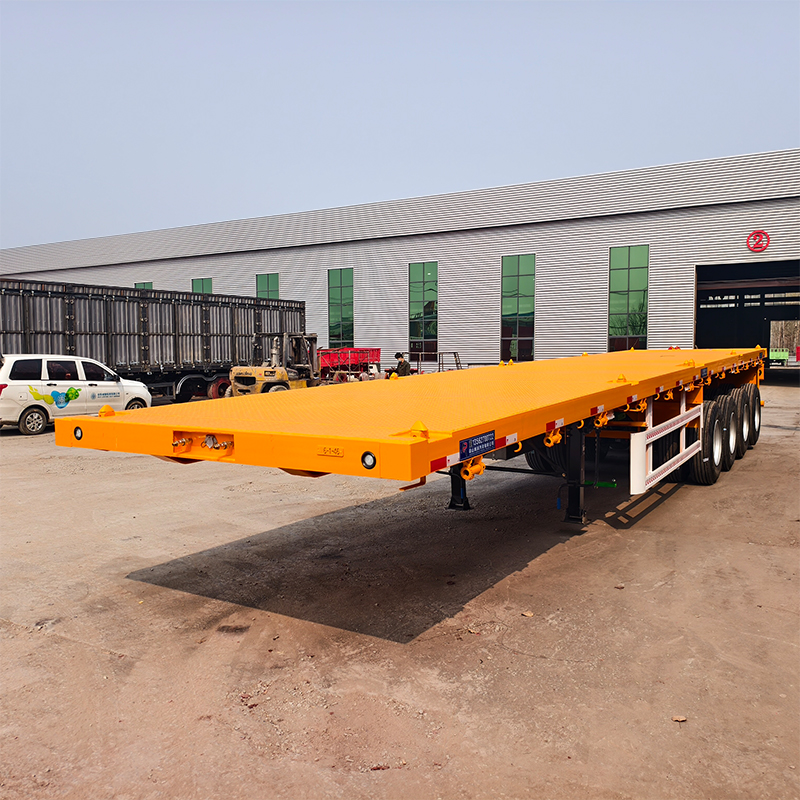

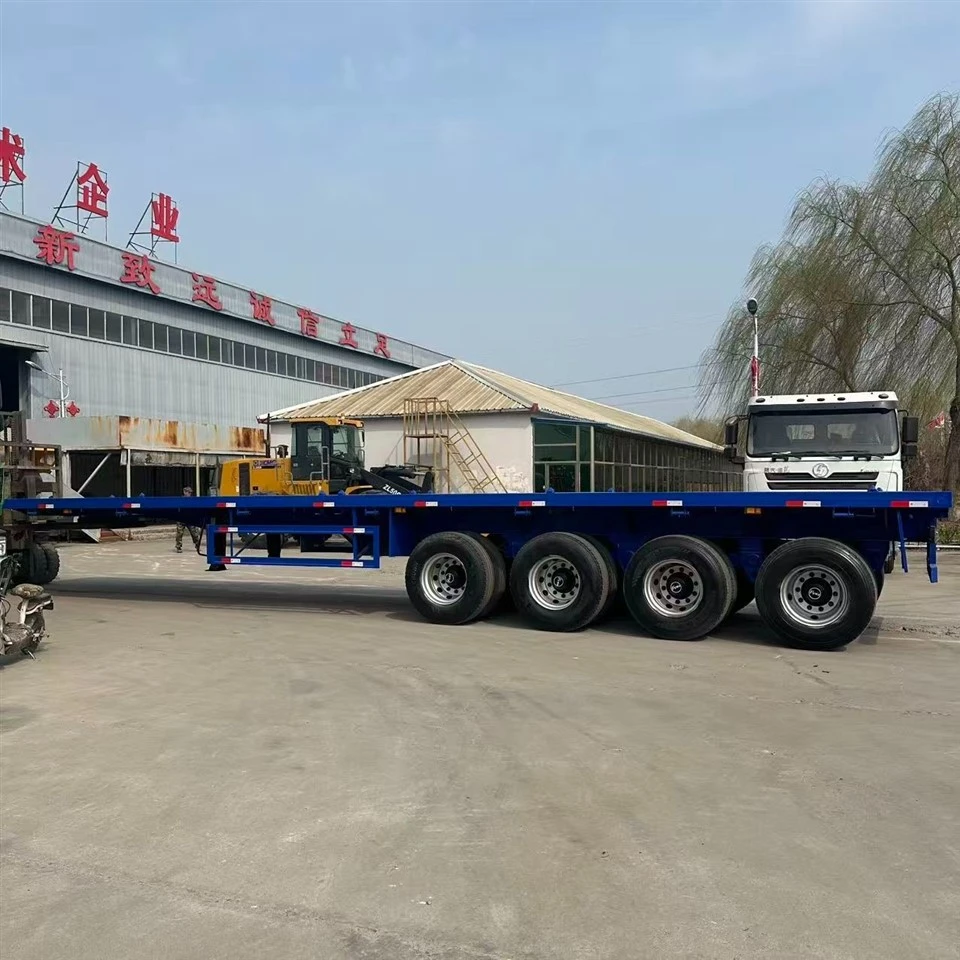

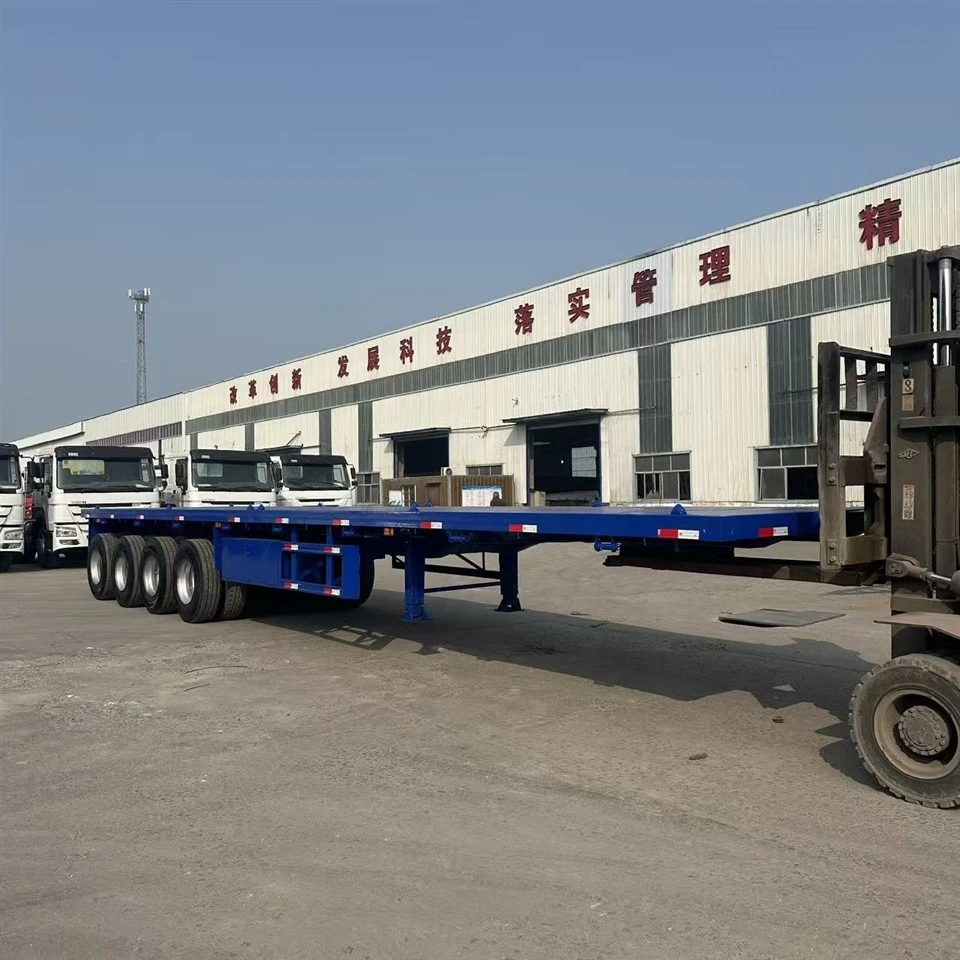

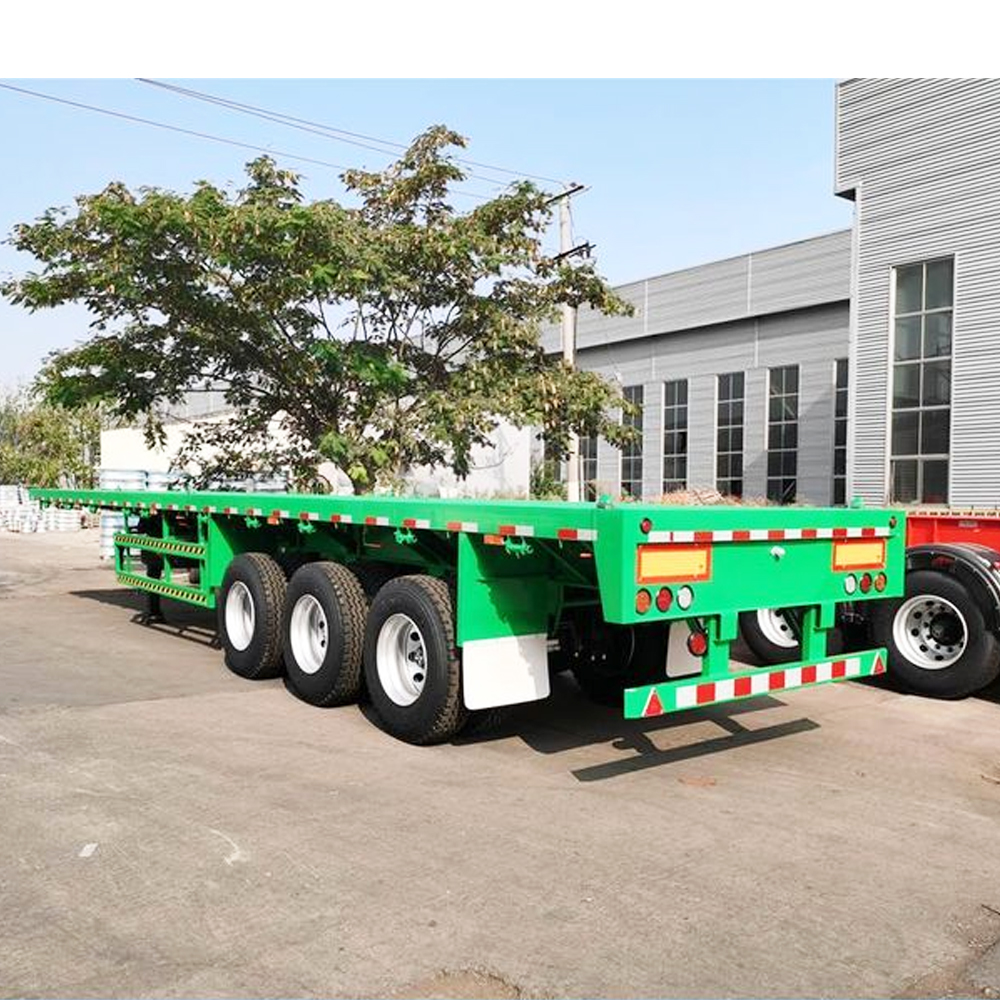

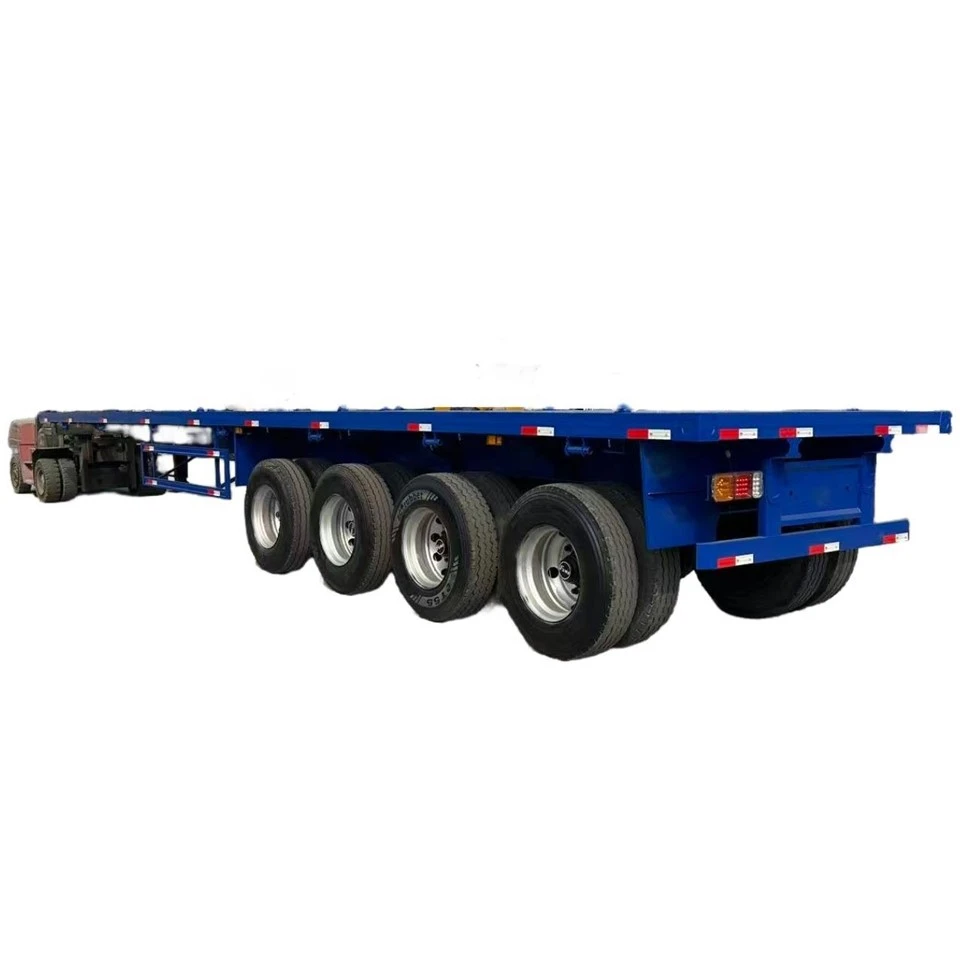

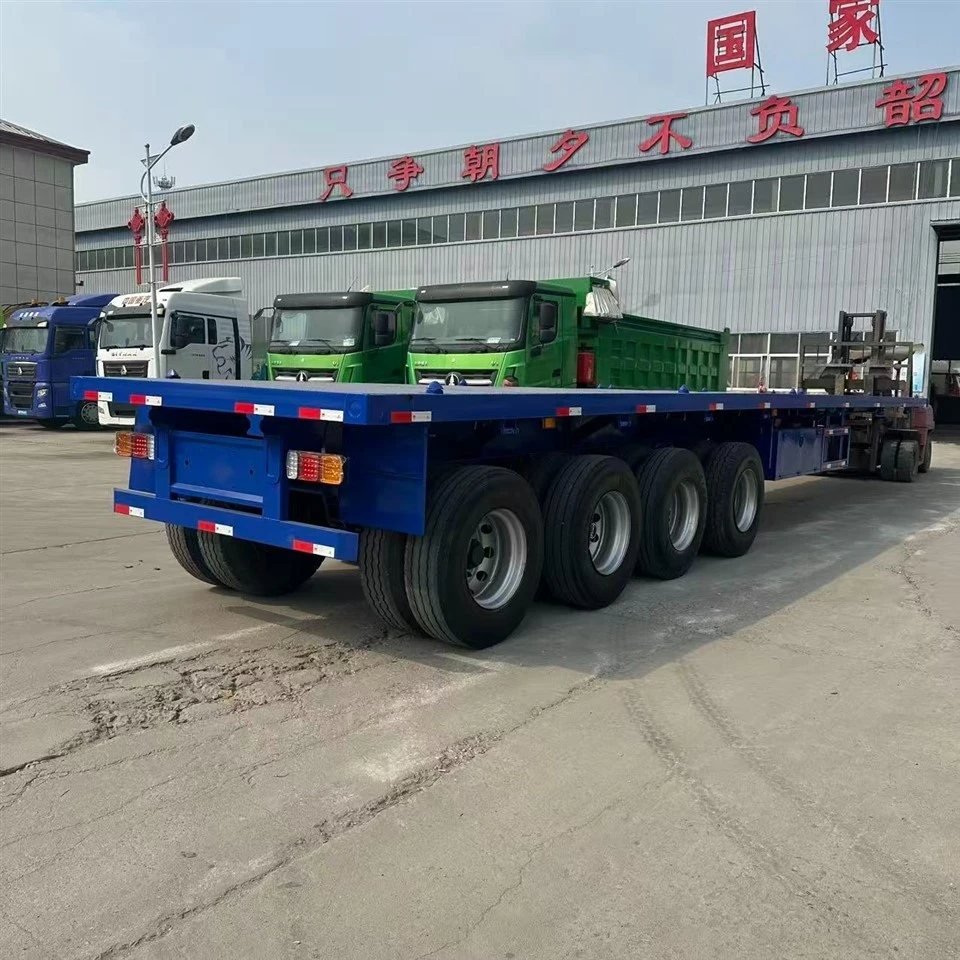

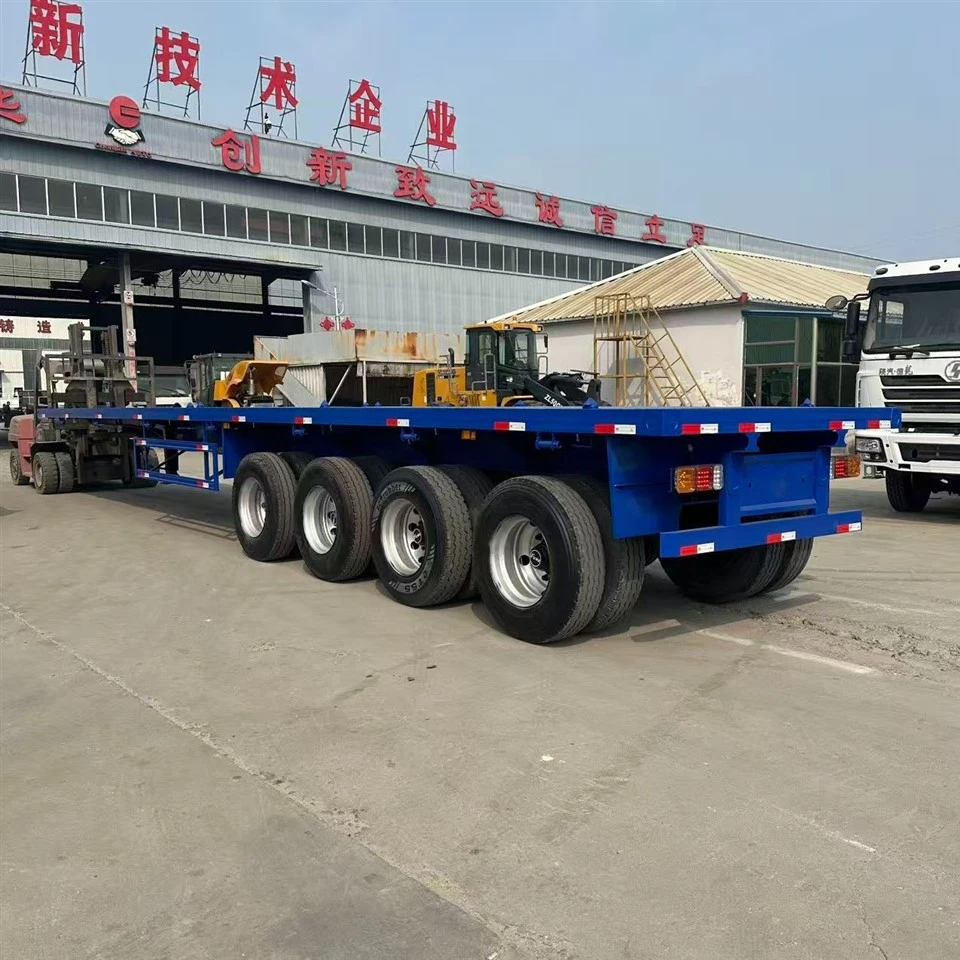

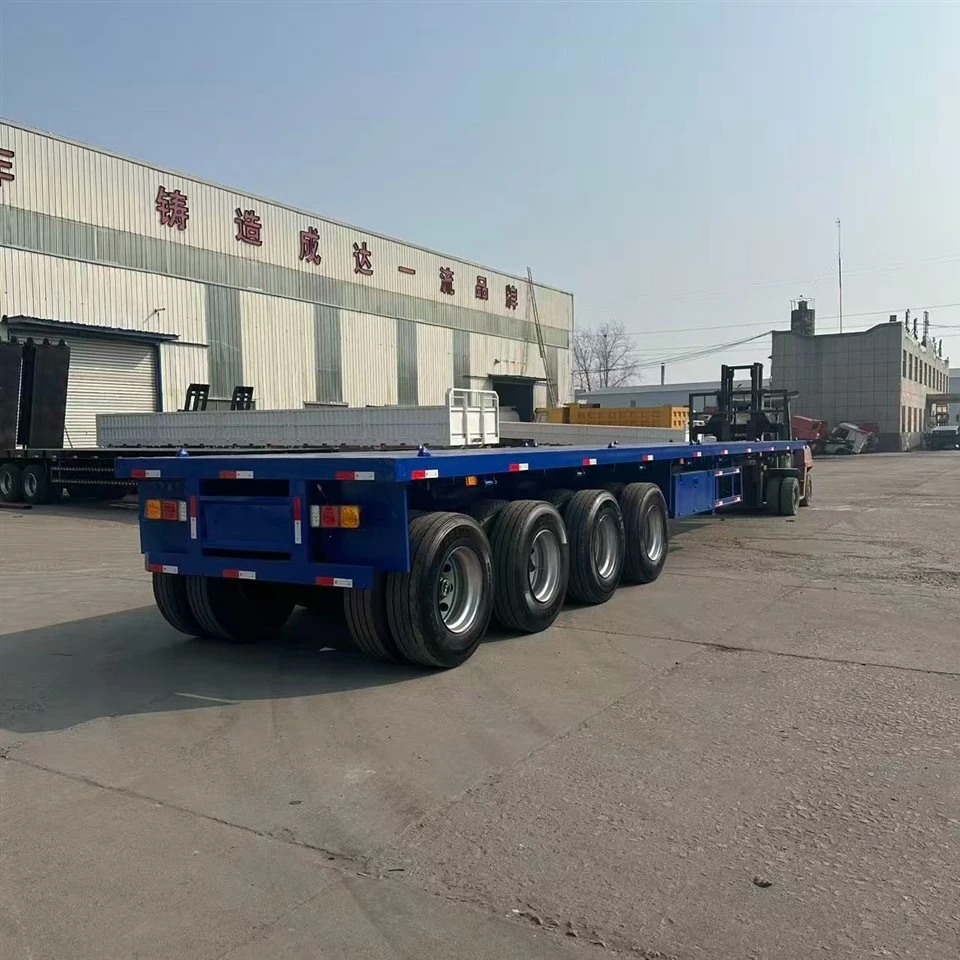

Good condition, low price, 4 axle 40 foot 50 ton flatbed, second hand 13 meter flatbed container semi trailer
Our products can be applied in multiple fields: container transportation, freight transportation, cargo transportation, and more
Axle: 2/3/4 axles or whatever you need
Axle brand: Chengda/FUWA
Material: optional, carbon steel, stainless steel, aluminum
Color options available, free logo
Product Parameters

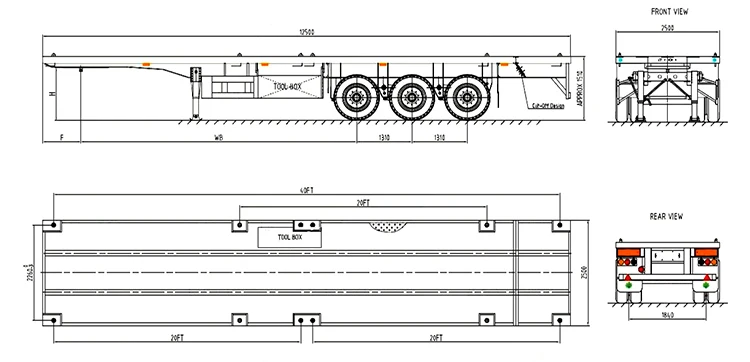

| model | 4 axis 40 foot flatbed container semi trailer |
| size |
12500mm*2500mm*1600mm
|
| side beam | 16 # channel steel standard |
| main beam | The beam height is 500 millimeters, the upper plate is 14 millimeters, the lower plate is 16 millimeters, and the middle plate is 8 millimeters. |
| felloe | 9.0 * 22.5 steel plate wheel, 10 holes, ISO 12 pieces |
| brake system | 10/10/10 steel plate spring 90mm (width) * 13mm (thickness) |
| brake system | Dual line pneumatic brake, SAE hose and connector, without ABS |
| landing gear | Yahua brand 28 ton external second gear telescopic manual operation 2500 millimeters behind the main sales position |
| brake chamber | 6 T30/30 spring brake chambers |
| tire | 12R22.5 |
| bumper | Rear bumper, adjustable height |
| electrical system | 1. Voltage: 24V 2. Socket: 7-way (7-wire harness) |
| Tail lights with turn signals, brake lights, and reflectors, as well as side lights. |

Plate semi trailer is a type of semi-trailer with a simple structure, convenient use, and high transportation efficiency. It adopts a flat structure without fences or side panels, which makes it particularly suitable for transporting larger and heavier goods.






Product Application

Sute Silk Road Automobile Trading Co., Ltd. is a truck manufacturer from Jining, Shandong, China. We have nearly 20 years of production history in this field of trucks, with direct sales from manufacturers, high quality, and the most favorable prices. Our products can be customized according to various needs. And unique company logos can be customized. The factory adopts advanced automation equipment. The steel welding adopts automatic submerged arc welding technology. Compared with traditional manual welding methods, the connection points are more perfect, flawless, and durable.We specialize in semi trailers and trucks, as well as second-hand trucks and semi trailers. We have our own semi trailer factory. We provide 24-hour service and one-year after-sales service. We prioritize integrity and establish long-term partnerships with our customers. We look forward to working together with you!
Our address
QuanPu Industrial Park, Liangshan, Jining, Shandong
Phone Number
+8615265769333
