Product Features：
The length can range from 10 meters to 15 meters. Most customers choose a length of 40 feet.
The height of the side panel can range from 1800mm to 3000mm.
The number of axles can be 1, 2, 3, or 4, used for transporting goods of different weights.
The material can be high-strength manganese carbon steel or aluminum.
The platform deck can be straight beam or stepped.

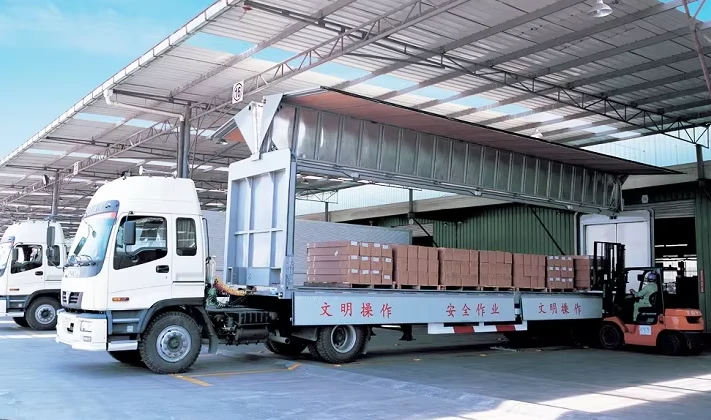

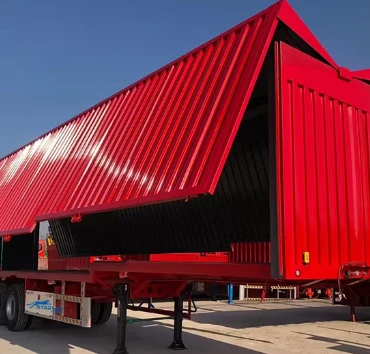

The number of doors can be customized according to customer requirements. We can produce wing type truck trailers.
Can be equipped with a refrigerated container and converted into a refrigerated trailer.
Suspension can use ordinary steel plate spring suspension, air suspension, or bogie suspension.
Product Specifications

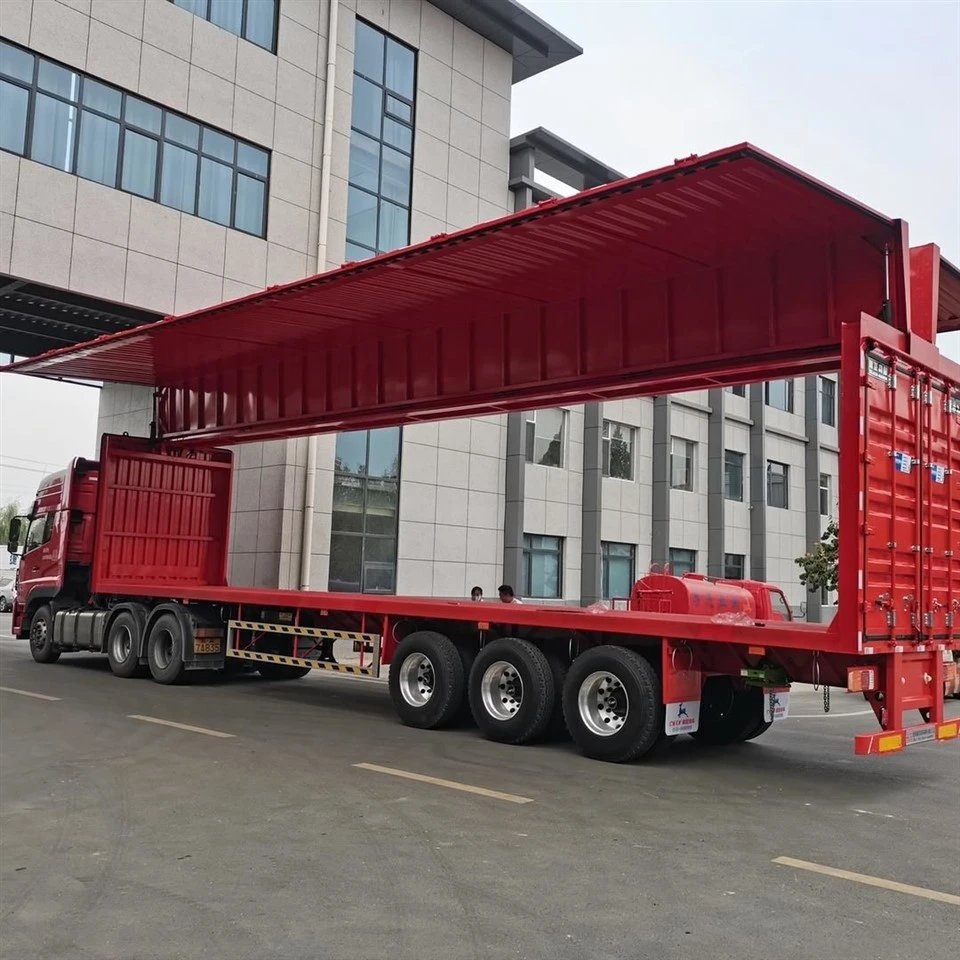

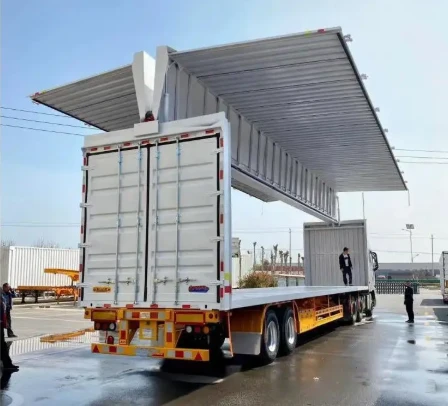

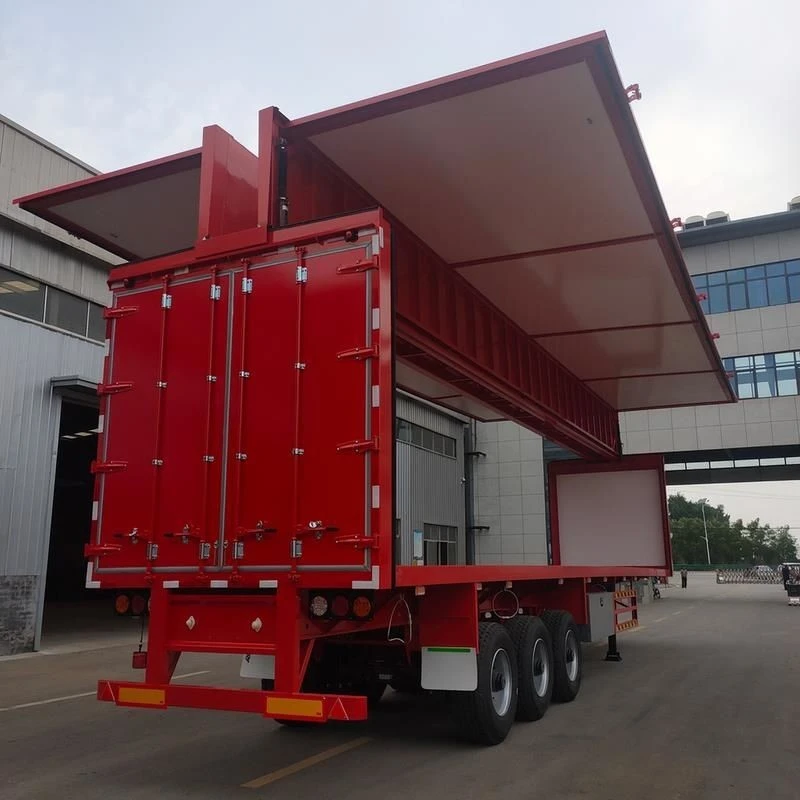

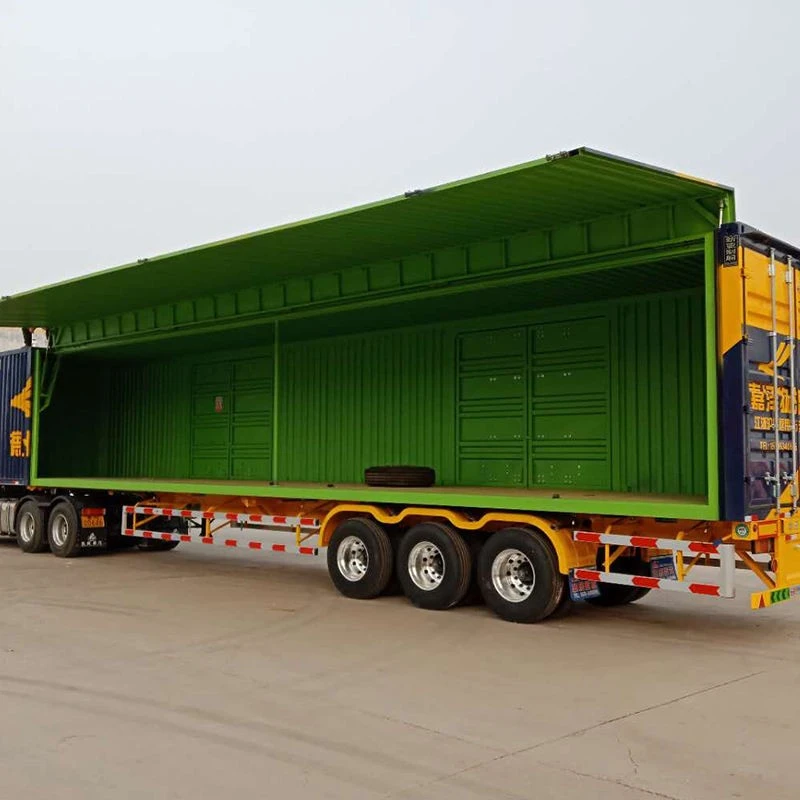

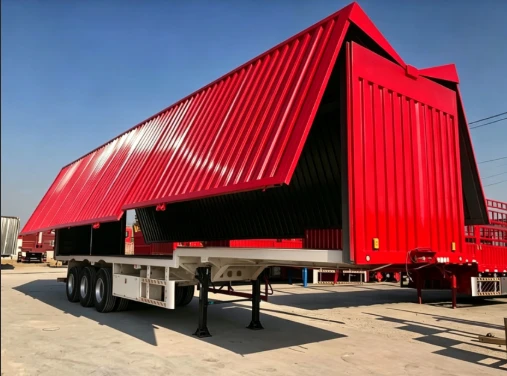

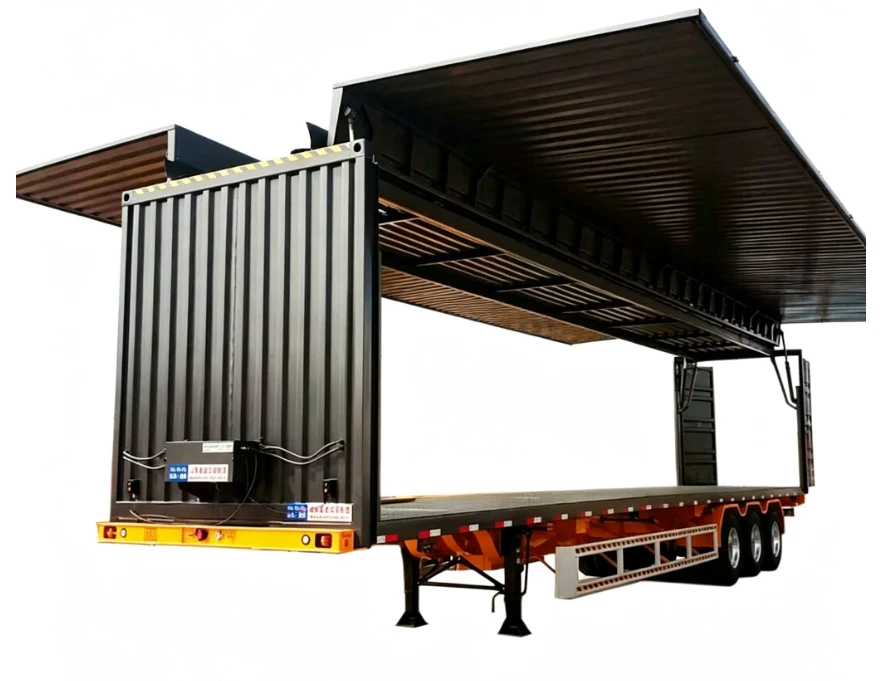

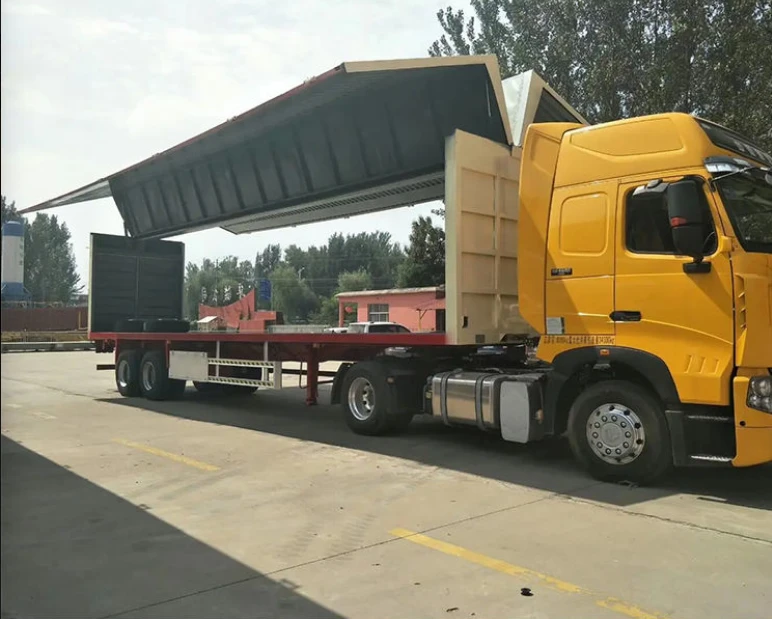

| model | 3 axis 40 foot open wing cargo trailer |
| payload | 40 foot |
| place of origin | Jining, Shandong, China |
| size |
12000*2500*1650mm |
| suspension system | Mechanical spring/air suspension system |
| axle | 3 axis 13 ton axle |
| painting | Sandblasting rust removal, one layer of primer, two layers of topcoat |

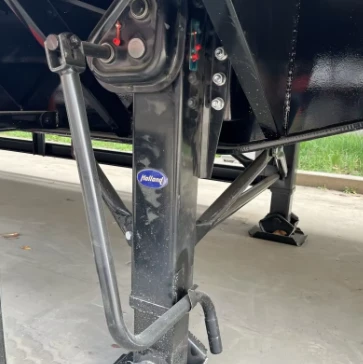

| landing gear | 28 ton dual speed JOST or equivalent brand |
| electrical system | 24V, 7-pin socket, LED light |

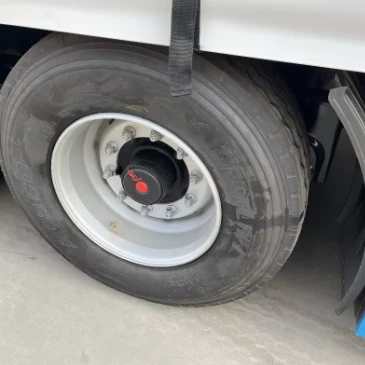

| tire |
12R22.5 |
| braking system | Dual circuit braking system, dual chambers, brake valve, 40 liter air storage tank; ABS optional |
| material | carbon steel |
| drawbar pin |
90#/ 50# |
| color | optional |
Product Details

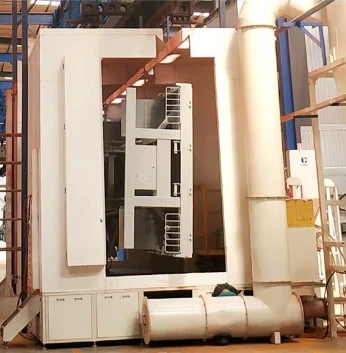

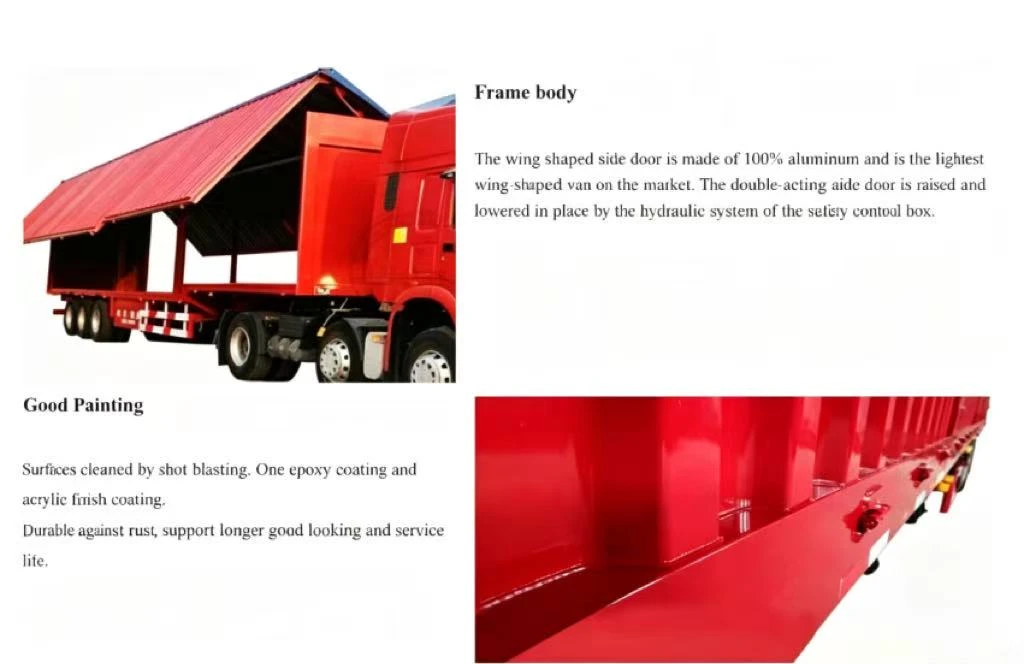

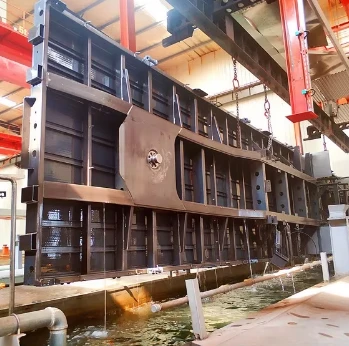

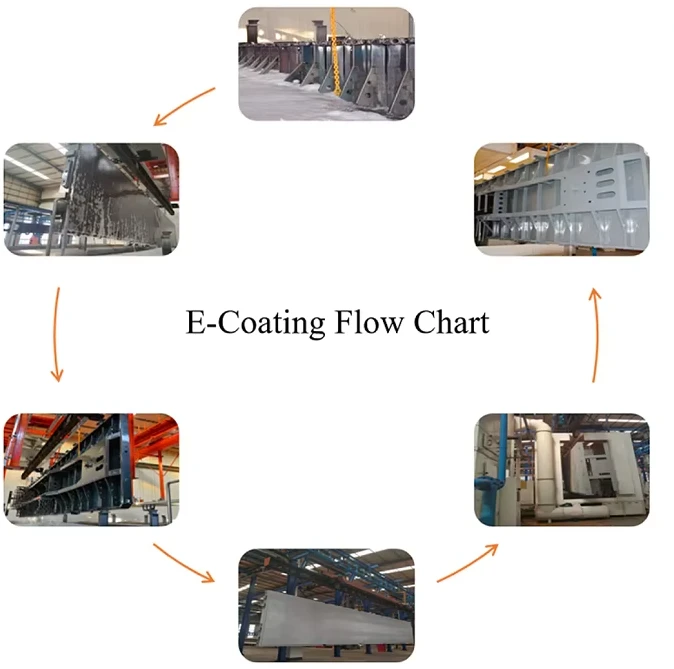

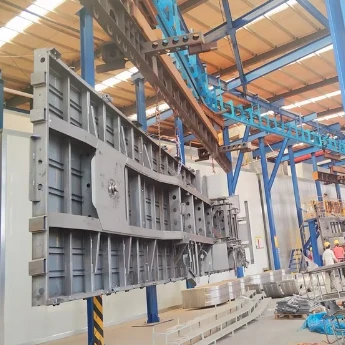

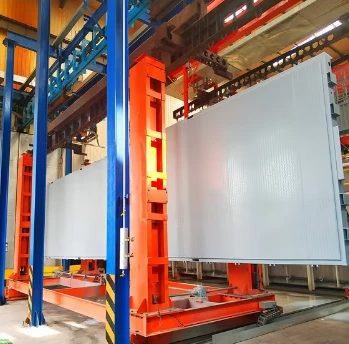

Electronic Coating Line
Electrophoretic coating for car spray painting results in greater wear and corrosion resistance compared to regular painting At the same time, the appearance performance is significantly better than ordinary painting

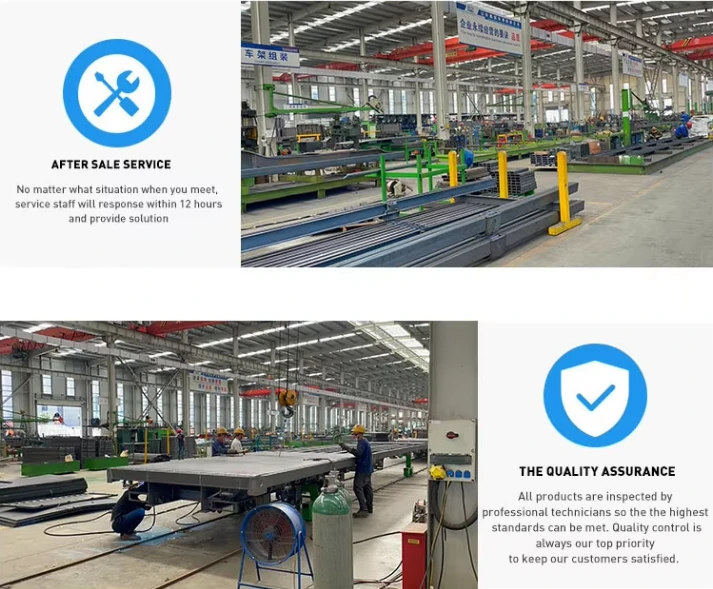

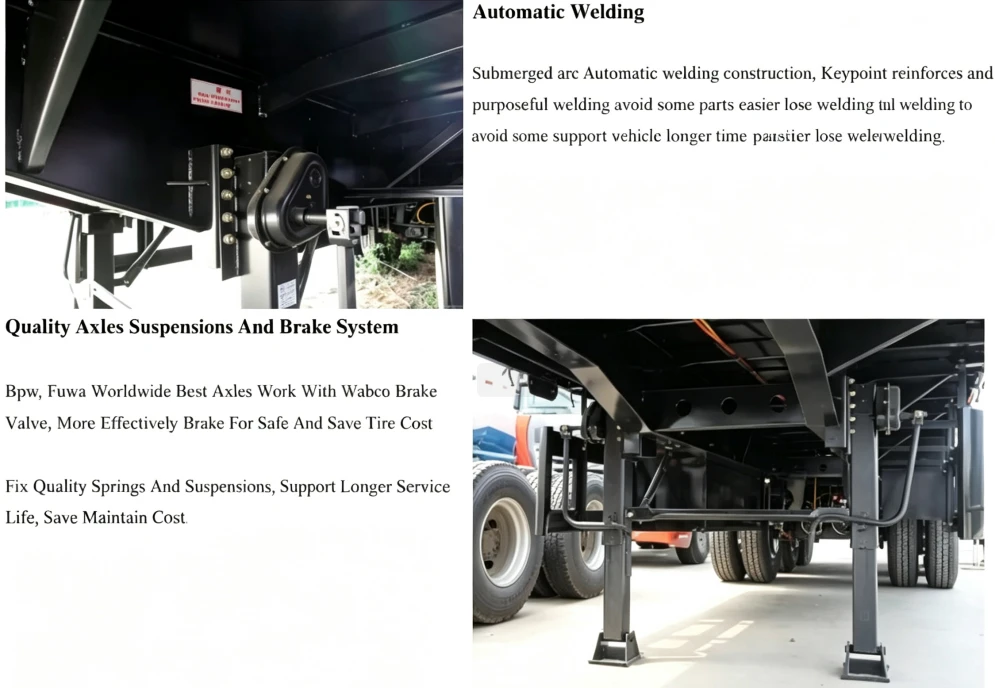

Sute Silk Road Automobile Trading Co., Ltd. is a truck manufacturer from Jining, Shandong, China. We have nearly 20 years of production history in this field of trucks, with direct sales from manufacturers, high quality, and the most favorable prices. Our products can be customized according to various needs. And unique company logos can be customized. The factory adopts advanced automation equipment. The steel welding adopts automatic submerged arc welding technology. Compared with traditional manual welding methods, the connection points are more perfect, flawless, and durable.We specialize in semi trailers and trucks, as well as second-hand trucks and semi trailers. We have our own semi trailer factory. We provide 24-hour service and one-year after-sales service. We prioritize integrity and establish long-term partnerships with our customers. We look forward to working together with you!
Our address
QuanPu Industrial Park, Liangshan, Jining, Shandong
Phone Number
+8615265769333
15166736520@163.com
Our clients come from all over the world
Taking a photo with the client, this moment is really amazing!
When we took photos together, we laughed and felt that our family was very happy.
These photos are not only a witness to our cooperation, but also a symbol of our friendship.
We supervise the entire process from the factory to the customer's designated port to ensure that your products arrive at their destination accurately and safely.
For bulk cargo transportation, trucks will be fixed on the deck of the ship.
For roll on/roll off transportation, trucks are stored in the cargo hold of the vessel.
For container transportation, trucks transport containers through platforms.
Our sales market
FAQ
How can we ensure quality?
Always conduct final inspection before shipment
What is your term of payment?
May I visit your factory?
Can I customize paintings and trailer designs
What is the delivery time and can you lower the price?
