Product Overview

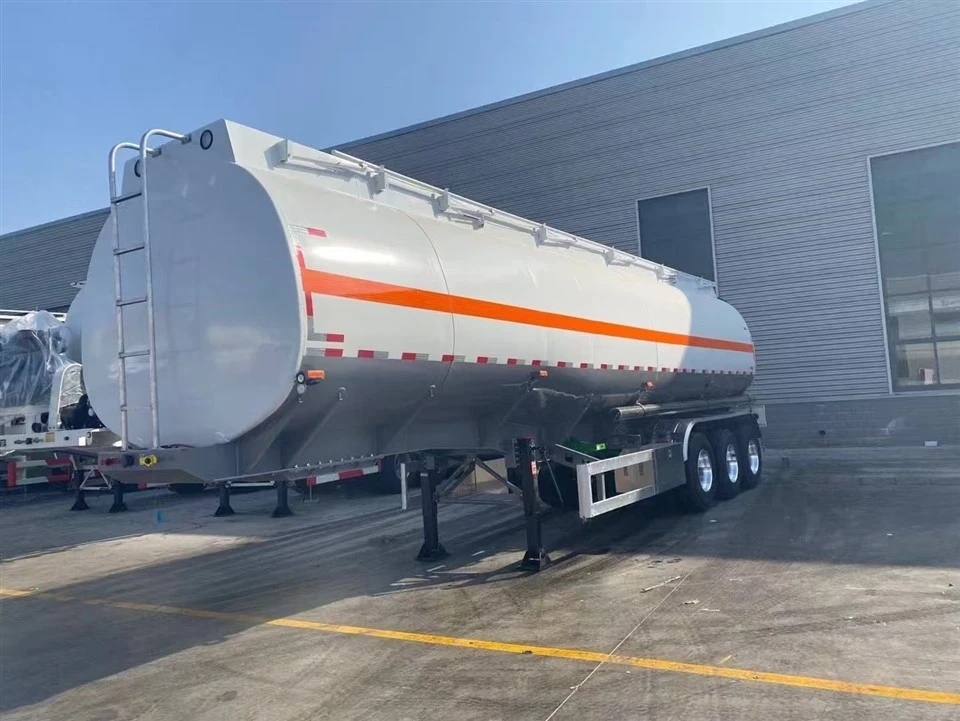

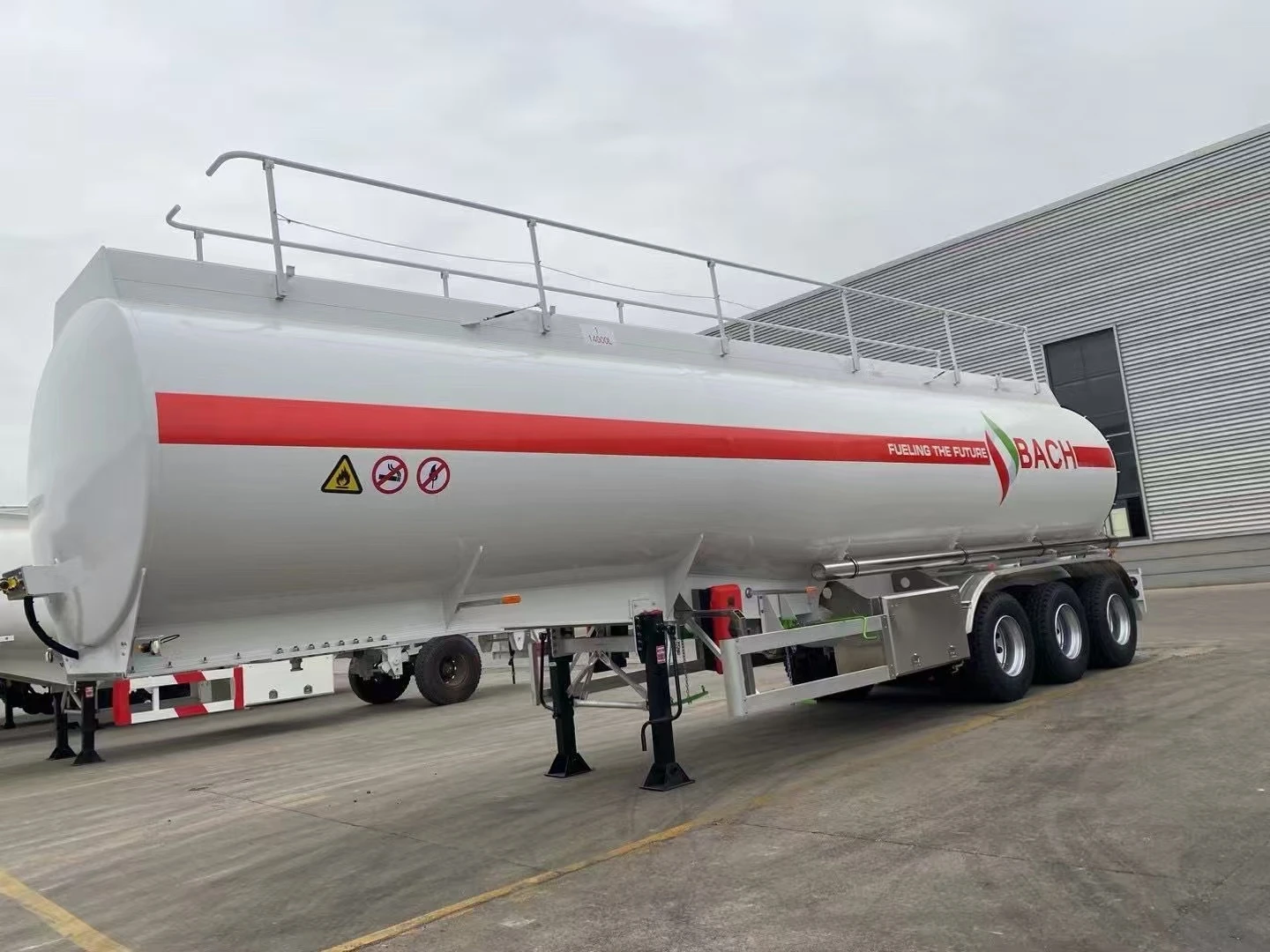

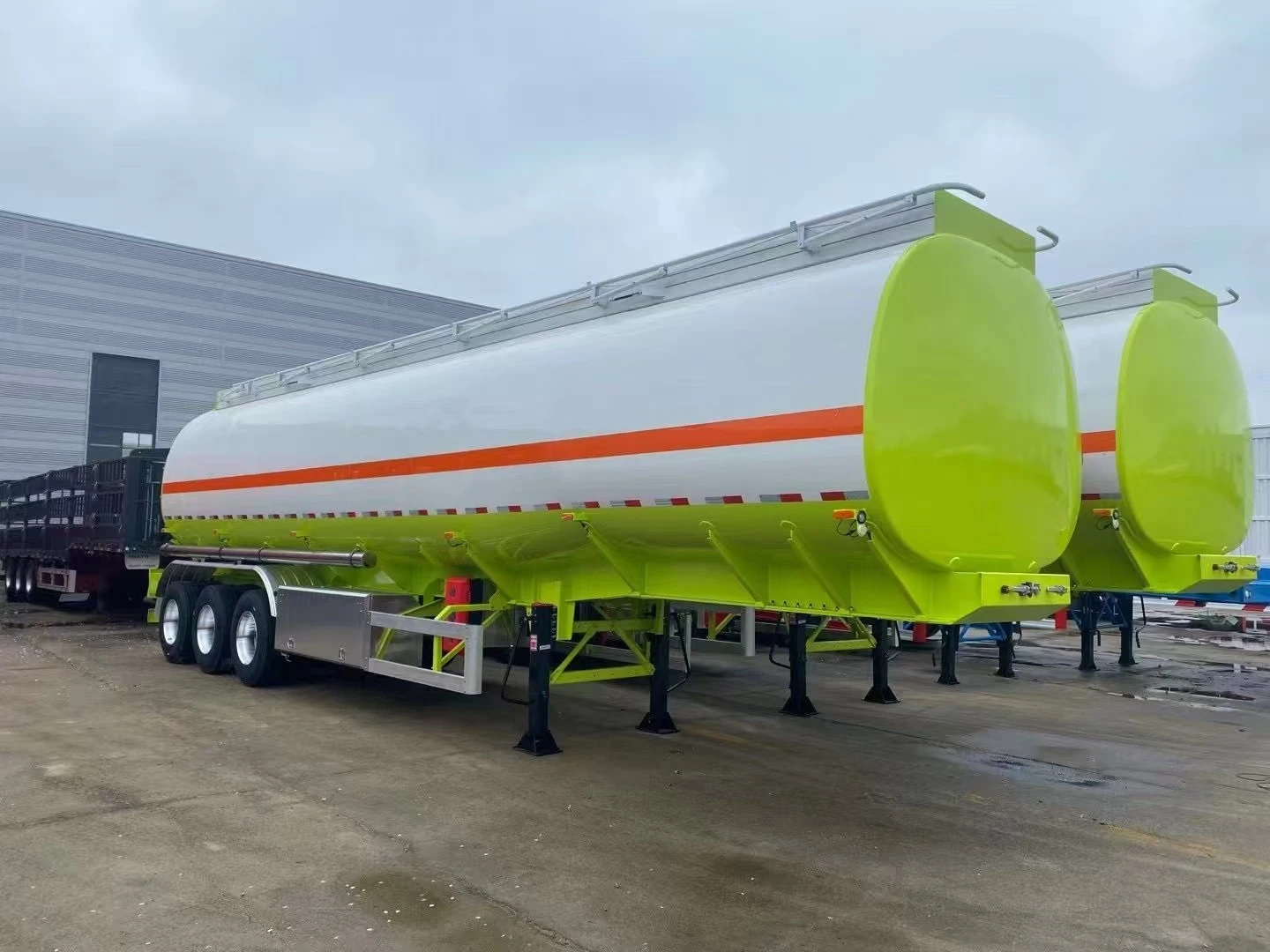

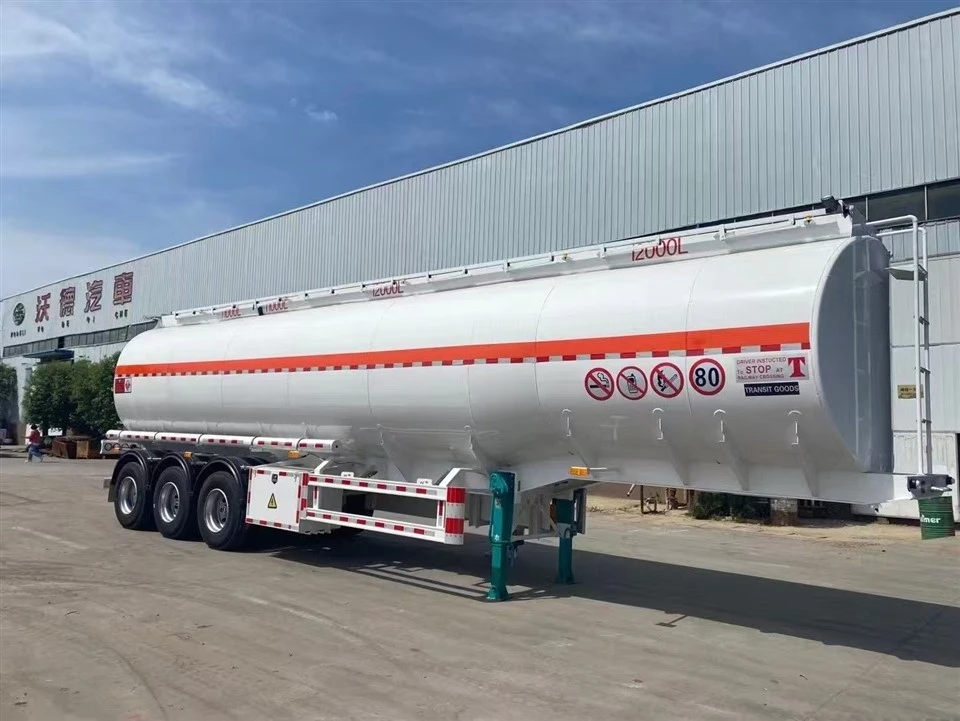

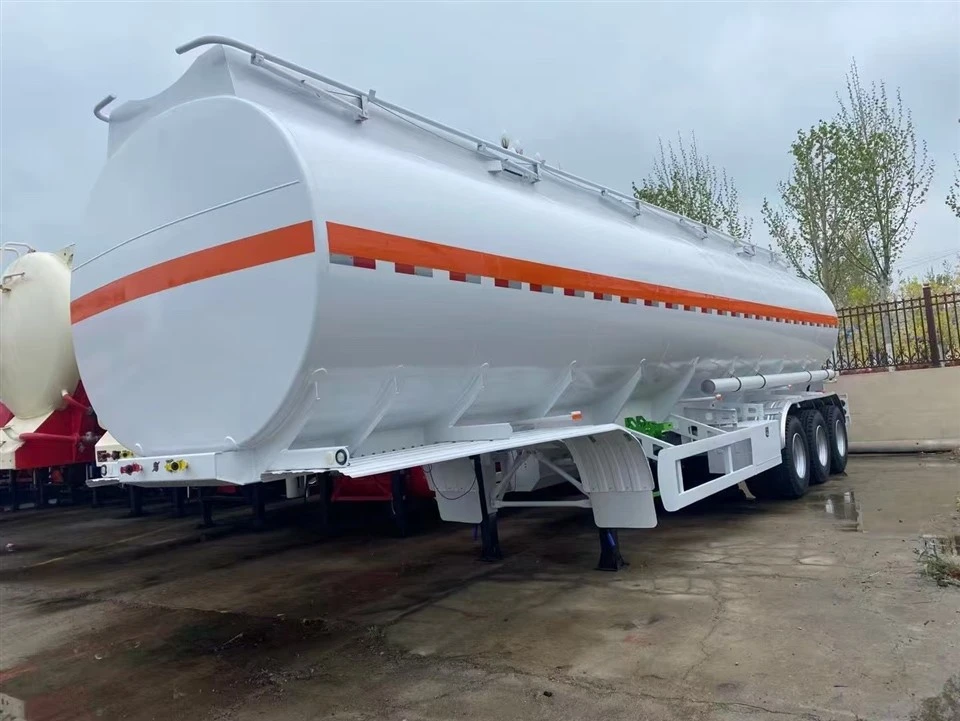

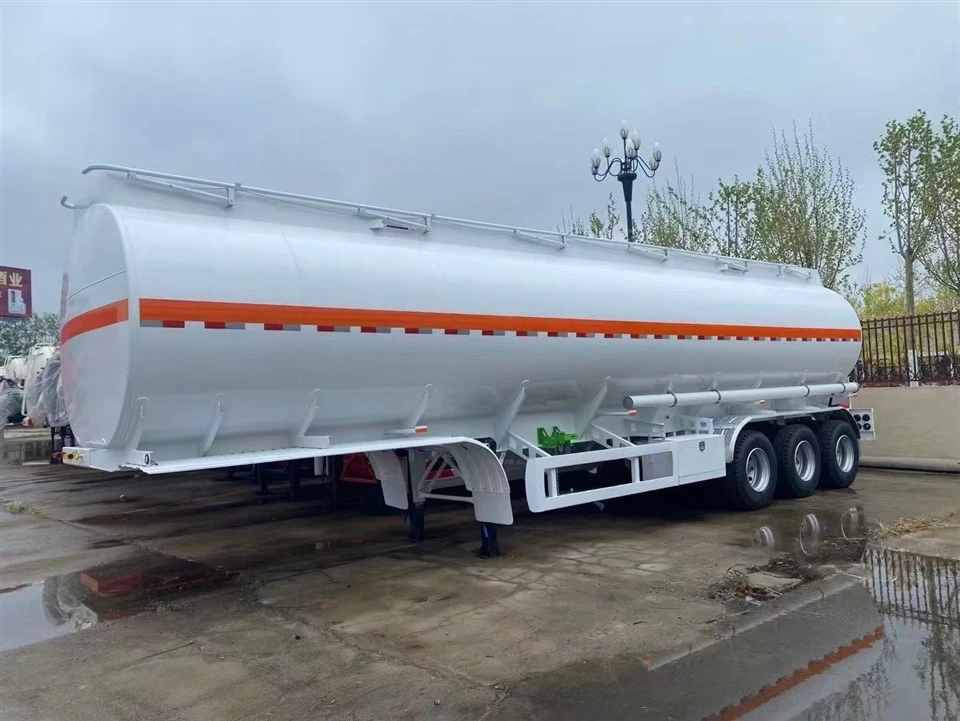

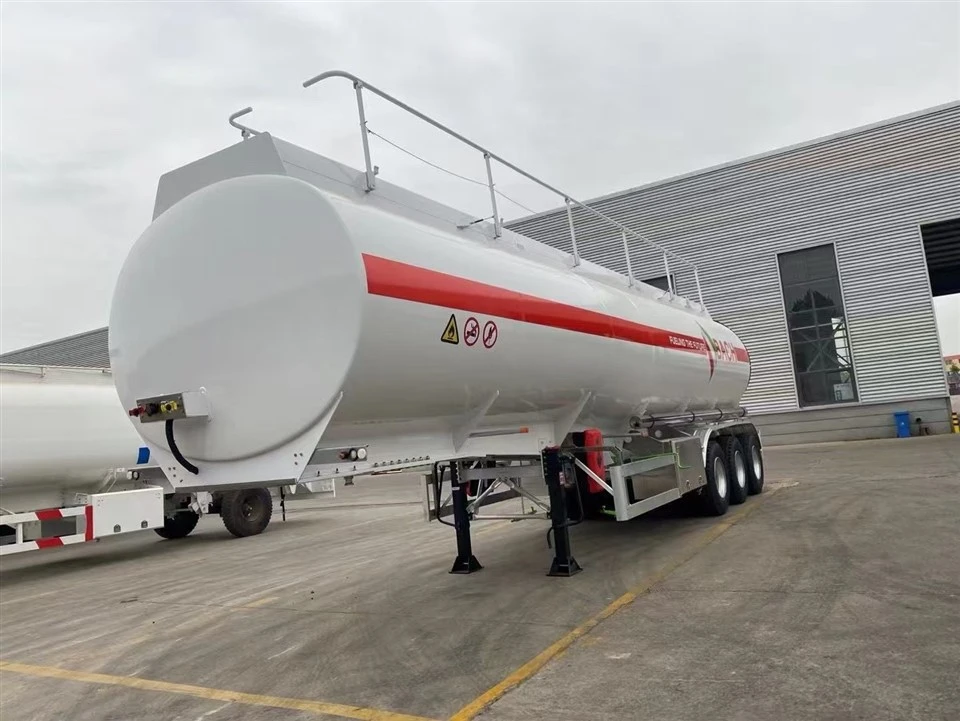

This 3-axle 45 cubic meter carbon steel semi-trailer is national standard hazardous fuel transport vehicle, specially designed for diesel oil transportation. Suitable for gas station distribution, construction site oil supply, trunk fuel logistics and cross-border oil delivery. Thickened Q235 carbon steel tank body, high impact resistance, cost-effective, compliant registration available for domestic and overseas clearance.

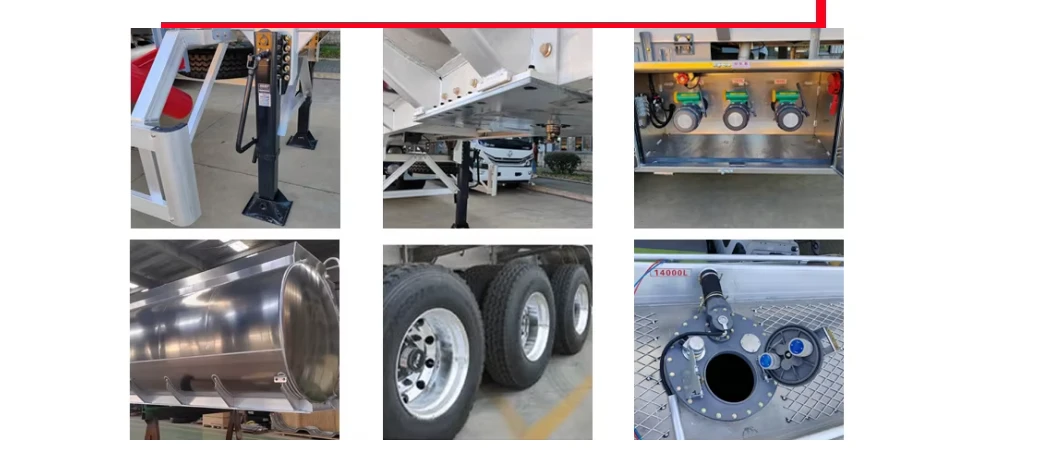

The vehicle offers convenient and efficient loading and unloading operations. It is equipped with dual-sided split oil outlet pipelines and independent control valves for each compartment, supporting single-compartment loading and unloading or multi-compartment simultaneous operations. It is suitable for multi-point delivery scenarios such as oil depots, construction sites, and gas stations, significantly reducing loading and unloading waiting time. The chassis uses thickened I-beam beams and is reinforced for overall load-bearing capacity, making it resistant to deformation under heavy loads. The vehicle is highly durable and can be used stably for long-term trunk line transportation..
| Item | Details |
|---|---|
| Tank Volume | 45m³ (45000L), rated volume for diesel. With reserved expansion space for safe full-load transportation |
| Tank Material | Thickened national standard Q235 carbon steel, high impact & pressure resistance, rigid structure, low maintenance cost |
| Compartment Layout | 3 separate compartments for different grades of diesel (0#, -10#). Independent valve control for flexible multi-site delivery |

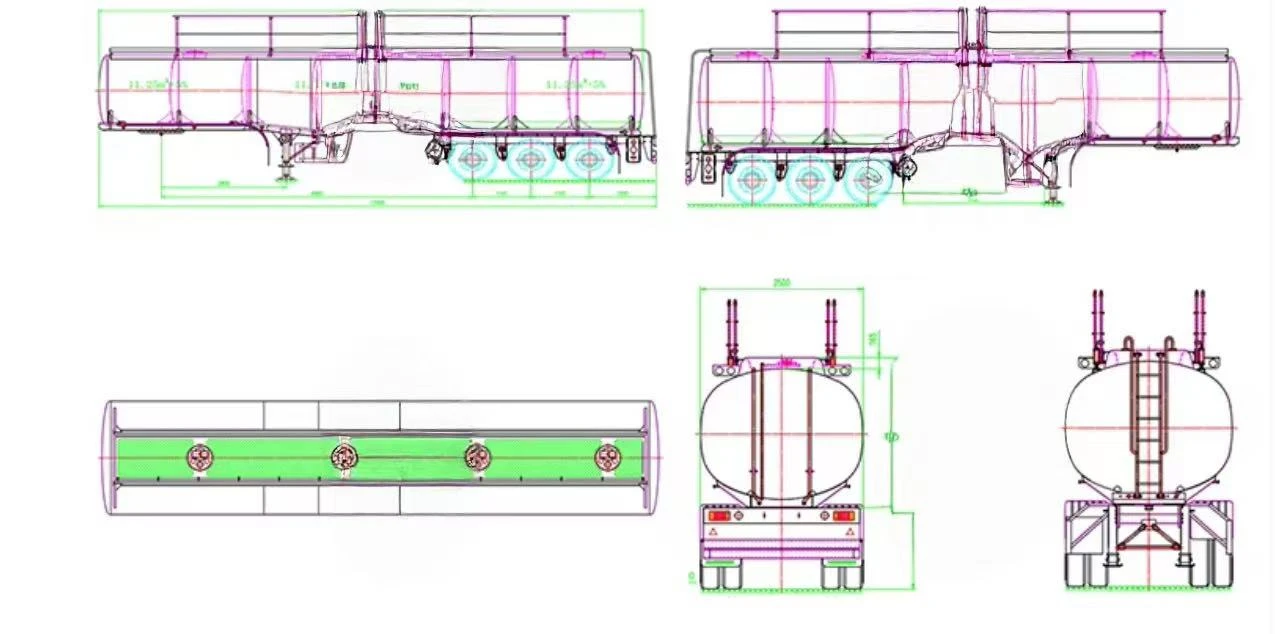

| Overall Dimensions | 11500×2500×3700mm, complying with national road size limits, suitable for all highways and provincial roads nationwide |
| Axle System | 3-axle heavy-duty 13T Fuwa/BPW axles with balanced braking, high load capacity for long-distance heavy transport |

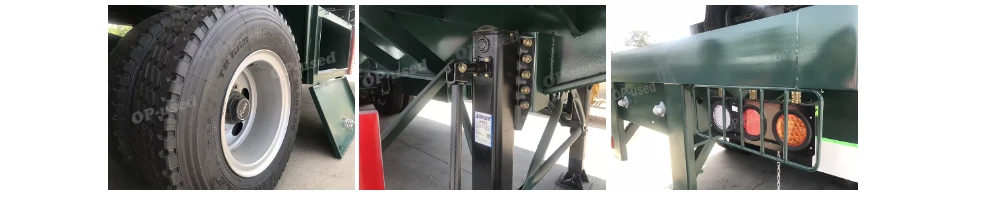

| Running Gear | 12 vacuum steel explosion-proof tires, 28T heavy-duty landing legs, 90# high-strength kingpin |
| Legal Payload | 32 tons legal load, fully compliant with national standards, no over-limit issues for annual inspection and road checks |
Safety Configuration
Standard configuration includes an emergency shut-off valve, pressure relief valve, and full vehicle static grounding straps, providing anti-static and leak-proof protection. One-button fuel shut-off in emergency situations comprehensively mitigates safety hazards during oil transportation.
Multi-layer seamless welding of the tank body, internal and external anti-corrosion and rust-proof treatment, reinforced carbon steel tank body for pressure resistance, preventing oil leakage and deformation even on bumpy or complex road conditions.
Top anti-theft sealed manhole cover and breather valve reduce diesel evaporation loss, provide rain and dust protection, and ensure safer sealed transportation.
Reinforced rear bumper beam, reflective hazardous materials markings throughout the vehicle, and flashing warning devices fully comply with national standards for hazardous materials on the road.
1. Fuel-fired semi-trailer tanks are made of high-quality carbon steel, 4mm or 6mm thick, conforming to national standards. Tank shapes include oval or square/round, and they can carry 1-4 types of oil. We also produce heated and insulated tanks.
2. Alcohol and chemical transport tank trucks are made of high-quality domestic and international stainless steel, with a thickness of 4mm to 5mm.
3. The tank body is equipped with multiple anti-surge baffles. High-pressure airtightness testing ensures high strength, a stable center of gravity, and safe and stable vehicle transport.
Company Profile
Sogdian Silk Road Co., Ltd.has more than 10 years of professional experience in the special vehicle industry. We have established a stable and extensive global partner network.
The company sells over 6,000 vehicles worldwide each year. Our products cover semi-trailers, cargo trucks, water sprinkler trucks, dump trucks, construction machinery and spare parts.
All vehicles enjoy a good reputation among global customers for reasonable prices, reliable performance and durable quality. We adhere to strict quality control, provide professional customized solutions and thoughtful one-stop export service, and sincerely welcome customers from all over the world to inquire and cooperate.
Clients served

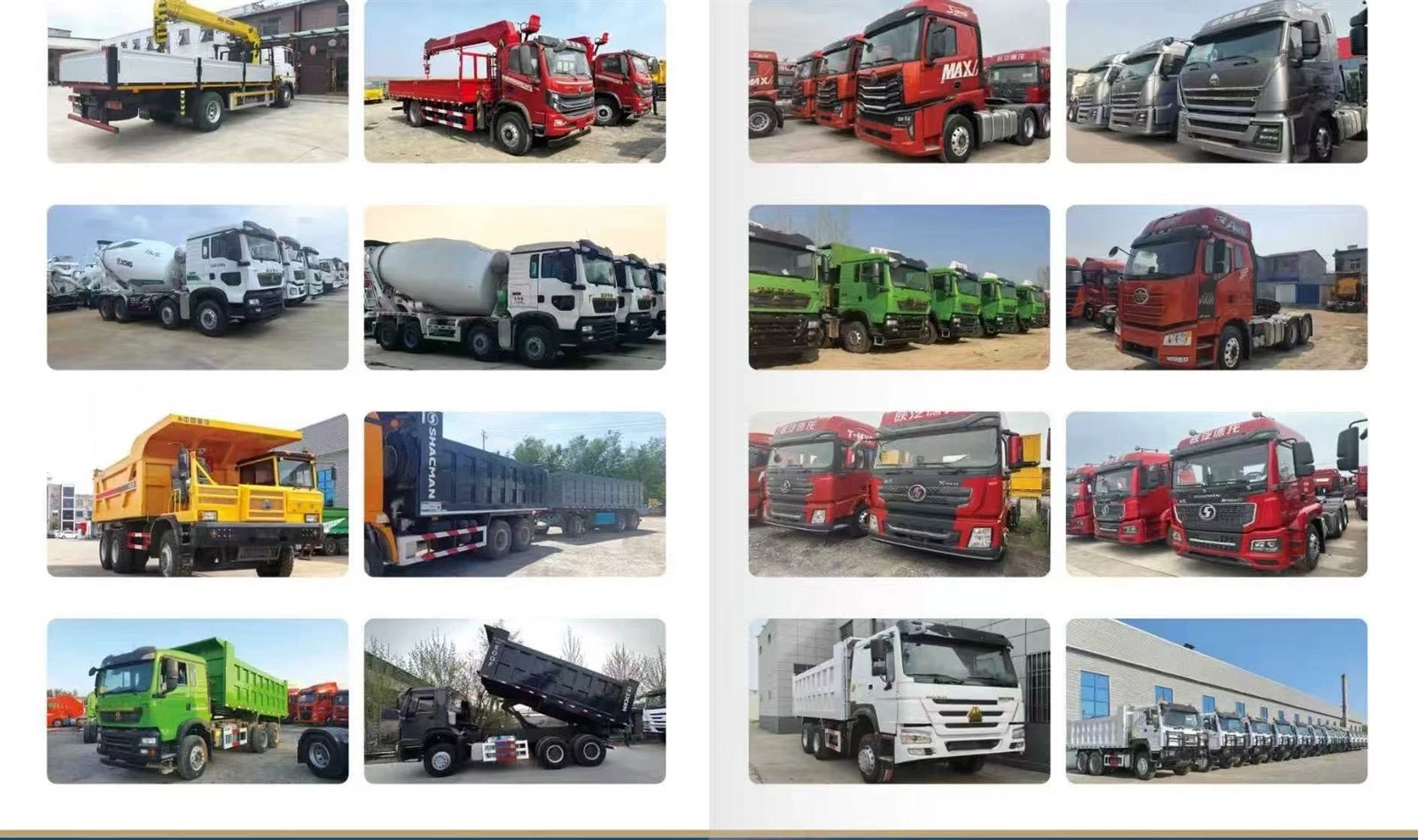

Our products
